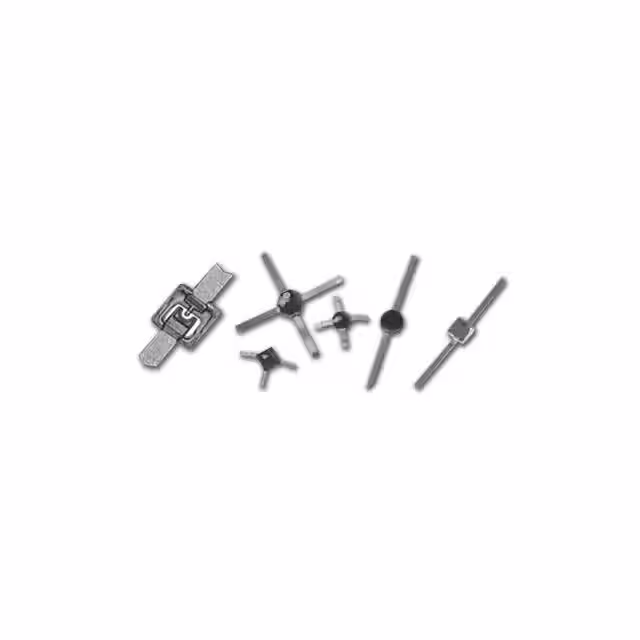

MSS40-045-C15
Or copy the link below:
- Mfr.Part #
- MSS40-045-C15
- Manufacturer
- MACOM Technology Solutions
- Package / Case
- Die
- Datasheet
- Download
- Description
- COM SCHOTTKY-CHIP, C15
- Stock
- 300
- In Stock ：
- 300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- MACOM Technology Solutions
- Product Category :
- Diodes - RF
- HTS Code :
- 8541.10.00.60
- Reach Compliance Code :
- Unknown
- Type of Schottky Barrier :
- MEDIUM BARRIER
- Operating Temperature :
- -65°C ~ 150°C
- Number of Terminals :
- 5
- Supplier Device Package :
- Chip
- Power Dissipation (Max) :
- 100 mW
- Terminal Form :
- NO LEAD
- Technology :
- Schottky
- Terminal Position :
- UPPER
- Diode Capacitance-Max :
- 0.12 pF
- Product Category :
- Schottky Diodes and Rectifiers
- JESD-30 Code :
- S-XUUC-N5
- Frequency Band :
- MILLIMETER WAVE BAND
- Product Type :
- Schottky Diodes and Rectifiers
- Subcategory :
- Diodes and Rectifiers
- Current - Max :
- 50 mA
- Diode Type :
- Schottky - Single
- RoHS :
- Details
- Configuration :
- Single
- Package / Case :
- Die
- Capacitance @ Vr, F :
- 0.12pF @ 0V, 1MHz
- Base Product Number :
- MSS40
- Package :
- Tray
- Diode Element Material :
- SILICON
- Surface Mount :
- yes
- Series :
- -
- Package Shape :
- Square
- ECCN Code :
- EAR99
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Brand :
- MACOM
- Manufacturer :
- MACOM
- Power Dissipation-Max :
- 0.1 W
- Voltage - Peak Reverse (Max) :
- 3V
- Product Status :
- Active
- Number of Elements :
- 1
- Resistance @ If, F :
- 7Ohm @ 5mA, 1MHz
- Qualification Status :
- Not Qualified
- Datasheets
- MSS40-045-C15
Schottky - Single 0.12pF @ 0V, 1MHz -65°C ~ 150°C SILICON NOT SPECIFIED UPPER Die
MSS40-045-C15 Overview
The maximum current of this device is 50 mA.This device operates at a maximum reverse voltage of 3V in accordance with its applicable specifications.
MSS40-045-C15 Features
from a maximum current of 50 mA volts
MSS40-045-C15 Applications
There are a lot of MACOM Technology Solutions
MSS40-045-C15 applications of RF diodes.
- Clamping circuits
- Diode ring mixer
- RF detector
- RF voltage doubler
- Wearables
- Smart metering
- Set top boxes
- RF attenuators and switches
- Low-loss, high-power limiters
- Receiver protectors
