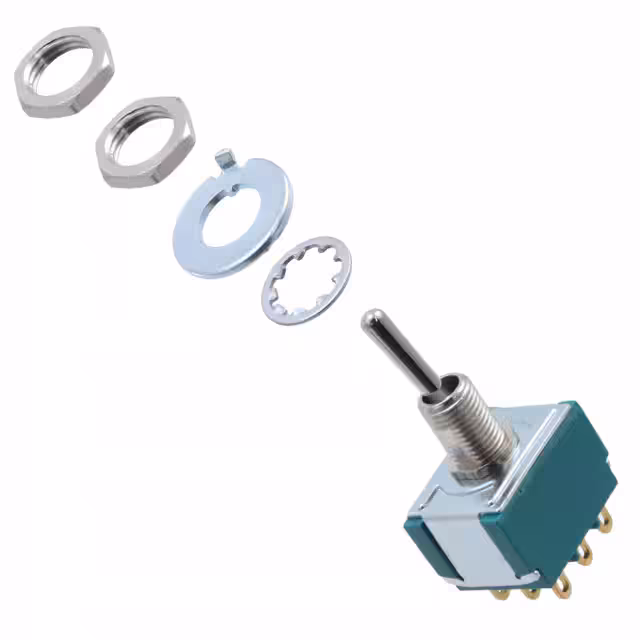

MTA306D
Or copy the link below:
- Mfr.Part #
- MTA306D
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE 3PDT 6A 125V
- Stock
- 111
- In Stock ：
- 111
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Electrical Life :
- 80000
- Voltage Rating - DC :
- 28V
- Illumination Type, Color :
- --
- Surface Mount :
- No
- Reach Compliance Code :
- Compliant
- Maximum Operating Temperature :
- + 80 C
- Number of Terminals :
- 9
- Mechanical Life :
- 150000
- Insulation Resistance :
- 1000(Mohm)
- JESD-609 Code :
- e4
- Terminal Finish :
- Gold (Au)
- Body Length or Diameter :
- 17.81 mm
- Circuit :
- 3PDT
- Contact Material :
- Gold Flash/Silver
- Product Type :
- Toggle Switches
- Base Product Number :
- MTA306
- Ingress Protection :
- --
- Operating Force-Max :
- 14.71 N
- Compliance :
- -
- Mounting :
- Panel Mount with Threads
- Illumination Color :
- -
- Body Height :
- 12.5 mm
- Switch Configuration :
- ON None ON
- Illumination Voltage (Nominal) :
- --
- Body Orientation :
- Straight
- Current Rating (Max) :
- 6(A)
- DC Voltage Rating (Max) :
- 28
- Product Height (mm) :
- 34.99(mm)
- Operating Temperature Max Deg. C :
- 80C
- Switch Action :
- LATCHED
- Actuator :
- Bat
- Contact Form :
- 3PDT
- Actuator Length (mm) :
- 10.49(mm)
- Bushing Type :
- Threaded
- ECCN Code :
- EAR99
- Package :
- Bulk
- Actuator Style :
- Long Bat Toggle
- Brand :
- TE Connectivity / PandB
- RoHS :
- Details
- Subcategory :
- Switches
- Illumination :
- Non-Illuminated
- Type :
- Switch
- Actuator Length :
- 10.49mm
- Mounting Style :
- Panel Mount
- Switch Type :
- TOGGLE SWITCH
- Body Breadth :
- 13 mm
- Sealing :
- EPOXY TERMINAL SEALED
- Actuator Material :
- COPPER ALLOY
- Contact Current(DC)-Max :
- 4 A
- Contact Voltage(AC)-Max :
- 125 V
- Bushing Thread :
- 1/4-40
- Actuator Type :
- Standard Round
- Termination Style :
- Wire Lug
- Seal Location :
- Terminals
- Terminal Type :
- Wire Lug
- Current Rating :
- 6A (AC), 4A (DC)
- Operating Temp Range :
- -20C to 80C
- Voltage Rating - AC :
- 125V
- Mounting Type :
- Panel Mount
- Contact Plating :
- Gold Flash/Silver
- Actuator Color :
- Chrome
- Factory Lead Time :
- 26 Weeks
- Product Category :
- Toggle Switches
- Product Depth (mm) :
- 17.81(mm)
- Contact Current(AC)-Max :
- 6 A
- HTS Code :
- 8536.50.90.65
- Product Status :
- Active
- Current Rating (Amps) :
- 6A (AC), 4A (DC)
- Contact Voltage(DC)-Max :
- 28 V
- Brand Name :
- Alcoswitch
- Lamp Type :
- -
- Flammability Rating :
- UL 94 V-0
- Seal Description :
- Epoxy
- Switch Function :
- On-On
- Product Length (mm) :
- 13(mm)
- Mounting Feature :
- PANEL MOUNT-THREADED
- Operating Temperature :
- -20 to 80 °C
- Series :
- MTA Green
- Packaging :
- Bulk
- Contact Function :
- On-On
- Manufacturer :
- TE Connectivity
- Contact Resistance Max :
- 20(mohm)
- Pole Throw Configuration :
- 3PDT
- Features :
- Epoxy Sealed Terminals
- AC Voltage Rating (Max) :
- 250
- Panel Cutout Dimensions :
- Circular - 6.40mm Dia
- Termination Type :
- Solder
- Thread Size :
- 1/4-40
- Minimum Operating Temperature :
- - 20 C
- Dielectric Strength :
- 1500VAC
- Operating Temperature Min Deg. C :
- -20C
- Mounting Angle :
- Vertical
- Datasheets
- MTA306D
MTA306D datasheet pdf and Toggle Switches product details from TE Connectivity stock available at
