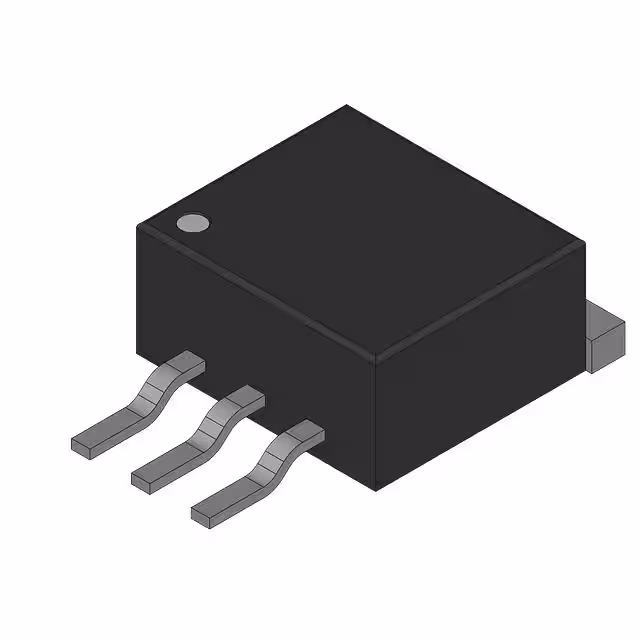

MTB60N05HDLT4
Or copy the link below:
- Mfr.Part #
- MTB60N05HDLT4
- Manufacturer
- onsemi
- Package / Case
- Datasheet
- Download
- Description
- N-CHANNEL POWER MOSFET
- Stock
- 23,850
- In Stock ：
- 23,850
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Series :
- *
- Terminal Form :
- Gull wing
- Polarity/Channel Type :
- N-Channel
- Terminal Finish :
- TIN LEAD
- Product Status :
- Active
- Avalanche Energy Rating (Eas) :
- 540 mJ
- Configuration :
- SINGLE WITH BUILT-IN DIODE
- Surface Mount :
- yes
- Reach Compliance Code :
- Unknown
- Pbfree Code :
- No
- Transistor Application :
- SWITCHING
- Number of Terminals :
- 2
- Pulsed Drain Current-Max (IDM) :
- 180 A
- Manufacturer :
- Rochester Electronics LLC
- Number of Elements :
- 1
- Transistor Element Material :
- SILICON
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Qualification Status :
- COMMERCIAL
- Drain-source On Resistance-Max :
- 0.014 Ω
- Pin Count :
- 3
- Case Connection :
- DRAIN
- DS Breakdown Voltage-Min :
- 50 V
- Package Shape :
- RECTANGULAR
- Operating Mode :
- ENHANCEMENT MODE
- FET Technology :
- METAL-OXIDE SEMICONDUCTOR
- JESD-609 Code :
- e0
- JESD-30 Code :
- R-PSSO-G2
- Package :
- Bulk
- Terminal Position :
- Single
- Datasheets
- MTB60N05HDLT4
MTB60N05HDLT4 Overview
Avalanche breakdown occurs when energy is applied to the MOSFET, and the avalanche energy ratings (Eas) are 540 mJ.In terms of pulsed drain current, it has a maximum of 180 A, which is its maximum rated peak drain current.To maintain normal operation, it is recommended that the DS breakdown voltage be above 50 V.
MTB60N05HDLT4 Features
the avalanche energy rating (Eas) is 540 mJ
based on its rated peak drain current 180 A.
MTB60N05HDLT4 Applications
There are a lot of onsemi
MTB60N05HDLT4 applications of single MOSFETs transistors.
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
