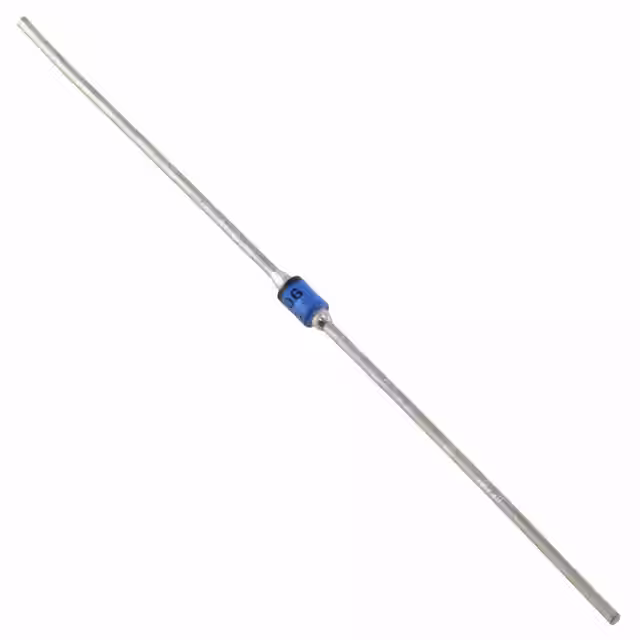

MV1N8149/TR

Manufacturer :

Microchip Technology

Product Category :

Packaging :

Reel

Power Line Protection :

No

Power - Peak Pulse :

1500W (1.5kW)

Supplier Device Package :

A, Axial

Mounting Type :

Through Hole

Product Status :

Active

Package / Case :

A, Axial

Product Type :

TVS Diodes

Breakdown Voltage :

7.79 V

Manufacturer :

Microchip

Polarity :

Unidirectional

Voltage - Reverse Standoff (Typ) :

6.8V

Voltage - Clamping (Max) @ Ipp :

12.8V

Applications :

GENERAL PURPOSE

Series :

-

Package :

Tape and Reel (TR)

Capacitance @ Frequency :

-

Current Rating :

20 uA

Operating Temperature :

-55°C ~ 175°C (TJ)

Clamping Voltage :

12.8 V

Voltage - Breakdown (Min) :

7.79V

Type :

Zener

Subcategory :

TVS Diodes / ESD Suppression Diodes

Working Voltage :

6.8 V

Current - Peak Pulse (10/1000μs) :

11.7A

Unidirectional Channels :

1

Maximum Operating Temperature :

+ 175 C

Brand :

Microchip Technology

Termination Style :

Axial

Number of Channels :

1 Channel

RoHS :

N

Product Category :

ESD Suppressors / TVS Diodes

Minimum Operating Temperature :

- 55 C
