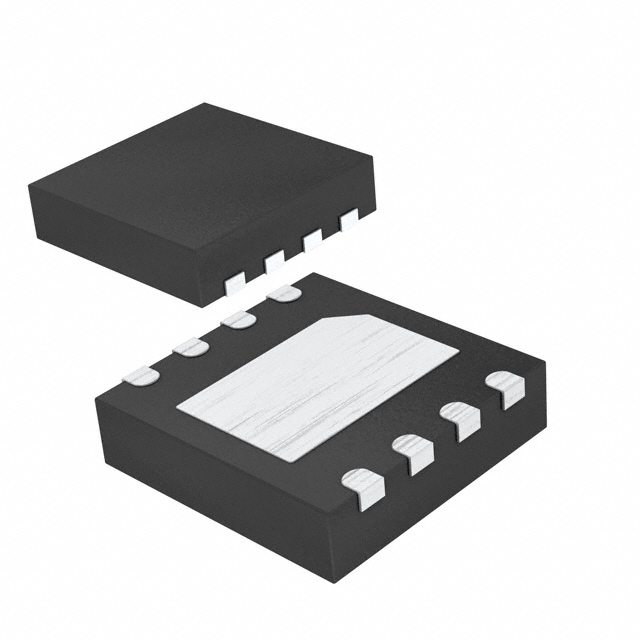

MX25U12835FZNJ-13G

Manufacturer :

Macronix

Product Category :

Memory

JESD-30 Code :

R-PDSO-N8

Number of Functions :

1

Memory IC Type :

Flash

Temperature Grade :

Industrial

Memory Density :

134217728 bit

Package :

Tray

Parallel/Serial :

Serial

Terminal Position :

Dual

Terminal Pitch :

1.27 mm

Memory Format :

Flash

Supplier Device Package :

8-WSON (6x5)

Width :

5 mm

Memory Organization :

16M x 8

Memory Width :

4

Voltage - Supply :

1.65V ~ 2V

Memory Size :

128Mbit

Reach Compliance Code :

Unknown

Organization :

32MX4

Number of Words :

33554432 words

Memory Interface :

SPI - Quad I/O, QPI

Memory Type :

Non-Volatile

Terminal Form :

NO LEAD

Surface Mount :

yes

Programming Voltage :

1.8 V

Seated Height-Max :

0.8 mm

Operating Mode :

SYNCHRONOUS

Package Shape :

RECTANGULAR

Clock Frequency :

75 MHz

Alternate Memory Width :

2

Manufacturer :

Macronix International Co Ltd

Supply Voltage-Min (Vsup) :

1.65 V

Write Cycle Time - Word, Page :

30µs, 3ms

Factory Lead Time :

16 Weeks

Package / Case :

8-WDFN Exposed Pad

Technology :

FLASH - NOR

Supply Voltage-Max (Vsup) :

2 V

Operating Temperature :

-40°C ~ 105°C (TA)

Base Product Number :

MX25U12835

Product Status :

Not For New Designs

Series :

MX25xxx35/36 - MXSMIO™

Additional Feature :

ALSO ORGANISED AS 128M X1

Mounting Type :

Surface Mount

Number of Terminals :

8

Length :

6 mm
