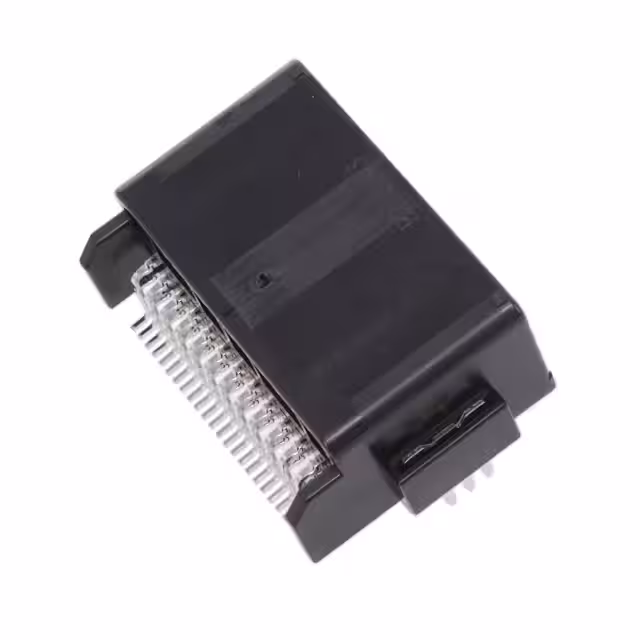

MX34R24HF4T
Or copy the link below:
- Mfr.Part #
- MX34R24HF4T
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 24POS 2.2MM
- Stock
- 44,928
- In Stock ：
- 44,928
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Connector Type :
- Header
- Fastening Type :
- Locking Ramp
- Current Rating (Amps) :
- 3A
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Mounting Type :
- Surface Mount, Right Angle
- Insulation Color :
- Black
- Termination :
- Solder
- Contact Length - Mating :
- 0.303 7.70mm
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~85°C
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Square
- Factory Lead Time :
- 14 Weeks
- Pitch - Mating :
- 0.087 2.20mm
- Number of Positions :
- 24
- Contact Finish - Mating :
- Tin
- Number of Rows :
- 2
- Feature :
- Solder Retention
- Style :
- Board to Cable/Wire
- Series :
- MX34R
- Insulation Height :
- 0.543 13.80mm
- Applications :
- Automotive
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- COPPER ALLOY
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- MX34R24HF4T
MX34R Series 2-Row Header Solder Copper Alloy Tray Surface Mount, Right Angle Tin Polyphenylene Sulfide (PPS), Glass Filled 24-Position Board to Cable/Wire 0.543 13.80mm Height
MX34R24HF4T Overview
The product comes in a package of Header.Surface Mount, Right Angle is the mount type.Tray cases are used to package the product.This product is in the MX34R Series.There's an application for the device called Automotive.As a result of its Solder Retention feature, it possesses a great deal of power.Operating temperature is -40°C~85°C.
MX34R24HF4T Features
MX34R series
MX34R24HF4T Applications
There are a lot of JAE Electronics
MX34R24HF4T Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
