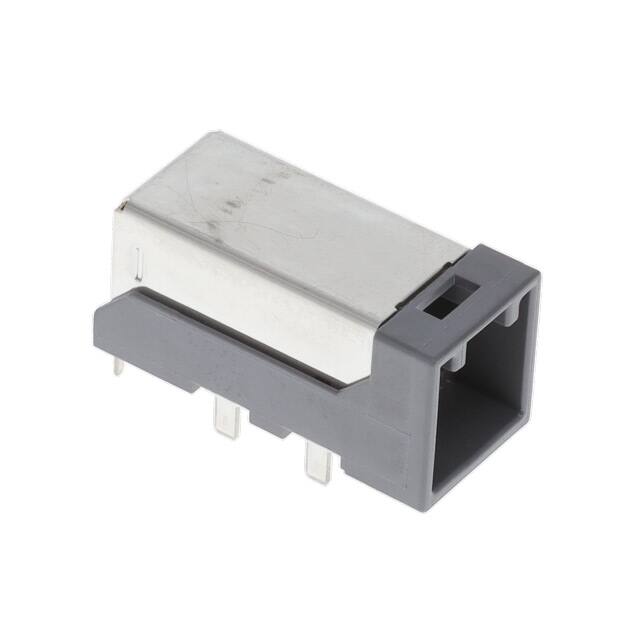

MX49004HQ1
Or copy the link below:
- Mfr.Part #
- MX49004HQ1
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 2MM
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -40°C~85°C
- Contact Length - Post :
- 0.087 2.20mm
- Series :
- MX49
- Connector Type :
- Header
- Applications :
- Automotive
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2016
- Mount :
- Through Hole
- Contact Shape :
- Square
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Syndiotactic Polystyrene (SPS), Glass Filled
- Insulation Height :
- 0.496 12.60mm
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Fastening Type :
- Latch Holder
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Tray
- Contact Type :
- Male Pin
- Number of Positions :
- 4
- Contact Finish - Post :
- Tin
- Termination :
- Solder
- Feature :
- Board Guide, Board Lock, Shielded
- Factory Lead Time :
- 14 Weeks
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Pitch - Mating :
- 0.079 2.00mm
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- MX49004HQ1
MX49 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Syndiotactic Polystyrene (SPS), Glass Filled 4-Position Board to Cable/Wire 0.496 12.60mm Height
MX49004HQ1 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the MX49 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive.A number of features make the Board Guide, Board Lock, Shielded feature more powerful.Through Hole represents the mounting point for the part.-40°C~85°C Operating Temperature is the default operating temperature for the device.
MX49004HQ1 Features
MX49 series
MX49004HQ1 Applications
There are a lot of JAE Electronics
MX49004HQ1 Rectangular Connectors applications.
