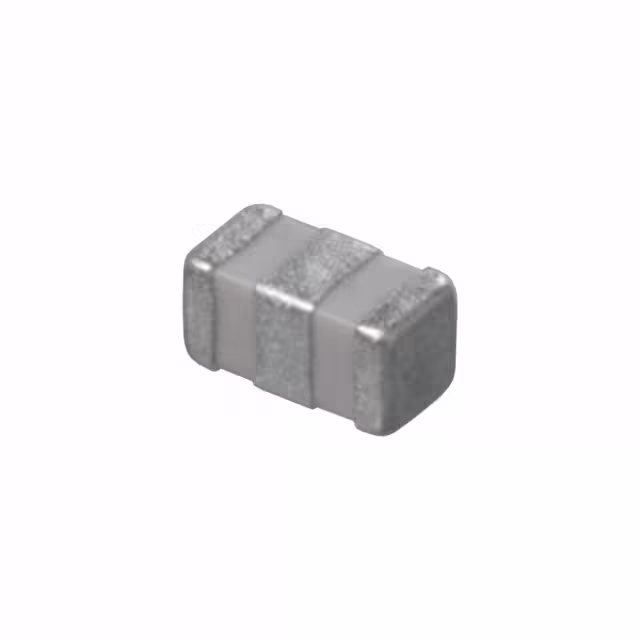

NFL18ST107X1C3D

Manufacturer :

Murata Electronics

Product Category :

EMI/RFI Filters (LC, RC Networks)

Base Product Number :

NFL18ST

JESD-609 Code :

e3

Resistance - Channel (Ohms) :

-

Packing Method :

Tape

Attenuation Value :

-

Rated Current :

0.1 A

Mount :

Surface Mount

Width :

800 µm

Radiation Hardening :

No

Number of Channels :

1

Size / Dimension :

0.063" L x 0.032" W (1.60mm x 0.80mm)

Mounting Type :

Surface Mount

Max Voltage Rating (DC) :

16 V

Current Rating :

2 A

Voltage Rating (DC) :

16 V

ESD Protection :

No

Package :

Tape and Reel (TR)

Operating Temperature :

-55°C ~ 125°C

Filter Type :

DATA LINE FILTER

Center / Cutoff Frequency :

100MHz (Cutoff)

ECCN Code :

EAR99

Length :

1.6 mm

Filter Order :

3rd

Termination :

Flat

Min Operating Temperature :

-55 °C

Package / Case :

0603 (1608 Metric), 3 PC Pad

Depth :

800 µm

Max Operating Temperature :

125 °C

Reach Compliance Code :

Compliant

HTS Code :

8504.50.80.00

Pbfree Code :

yes

Product Status :

Last Time Buy

Capacitance :

50 pF

Number of Functions :

1

Manufacturer :

Murata Manufacturing Co Ltd

Values :

L = 140nH, C = 40pF

Max Current Rating :

100 mA

Applications :

GENERAL PURPOSE

Circuit Type :

Filter

Physical Dimension :

L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)

Rated Voltage :

16 V

Current :

100 mA

RoHS :

Compliant

Height :

0.035" (0.90mm)

Additional Feature :

CUT-OFF FREQUENCY 100 MHZ; T-TYPE CIRCUIT

Terminal Finish :

Tin (Sn)

Type :

Low Pass

Inductance :

0.175 µH

Insulation Resistance-Min :

1000 mΩ

Series :

EMIFIL?, NFL18ST
