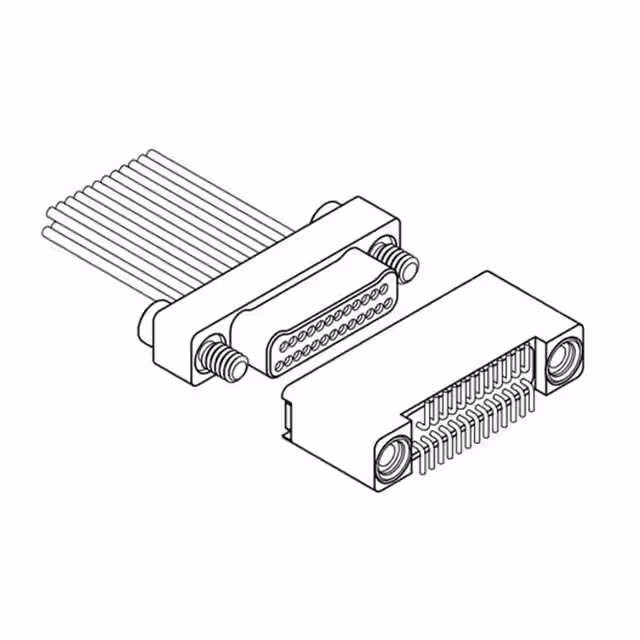

NK-2B2-015-225-TH00

Manufacturer :

AirBorn

Product Category :

D-Sub Connector Assemblies

Empty Shell :

No

Material Flammability Rating :

-

Connector Type :

Receptacle, Female Sockets

Product :

Connectors

Termination Type :

Surface Mount

Number of Positions :

15 Position

Body/Shell Style :

Receptacle

Shell Size, Connector Layout :

0.025 Pitch x 0.025 Row to Row

Connector Style :

D-Type, Nano-D

RoHS :

N

Total Number of Contacts :

15

Primary Material :

Metal

Contact Finish :

Gold

Pbfree Code :

No

Shell Finish :

Nickel

Contact Finish Thickness :

50.0µin (1.27µm)

Contact Plating :

Gold

Subcategory :

MIL-Spec / MIL-Type

Tradename :

N

Filter Feature :

No

Shell Material, Finish :

Aluminum Alloy, Nickel Plated, Electroless

Shell Material :

Metal

Wire Gauge :

-

Brand :

AirBorn

Housing Material :

Liquid Crystal Polymer (LCP)

Termination :

Wire Leads

Contact Gender :

Socket (Female)

DIN Conformance :

No

Color :

-

Product Type :

Rectangular MIL Spec Connectors

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Series :

*

Contact Type :

Signal

Contact Material :

BERYLLIUM COPPER

Reach Compliance Code :

Compliant

Mounting Style :

PCB

Mounting Type :

Panel Mount

JESD-609 Code :

e0

Minimum Operating Temperature :

- 55 C

Maximum Operating Temperature :

+ 125 C

Voltage Rating :

83 V

Backset Spacing :

-

Option :

GENERAL PURPOSE

Current Rating (Amps) :

-

Mounting Angle :

Straight

Operating Temperature :

-

Contact Form :

-

Flange Feature :

Housing/Shell (0-80)

Product Category :

Rectangular MIL Spec Connectors

MIL Conformance :

No

Features :

-

Product Status :

Active

Manufacturer :

AirBorn

Termination Style :

SMD/SMT

Current Rating :

1 A

Dielectric Material :

Liquid Crystal Polymer (LCP)

Number of Rows :

2 Row

Package :

Retail Package

Ingress Protection :

-

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Mixed Contacts :

No

Insulation Resistance :

5000 MOhms

Pitch :

0.635 mm
