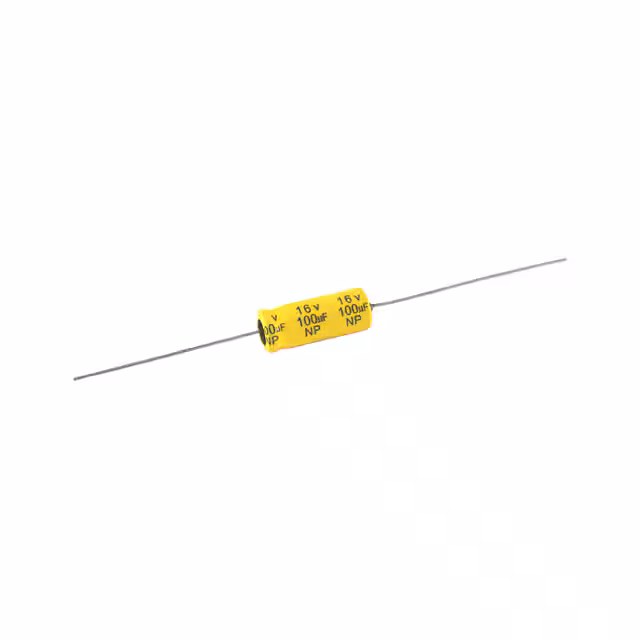

NPA100M25

Manufacturer :

NTE Electronics, Inc.

Product Category :

Aluminum Electrolytic Capacitors

Product Status :

Active

Capacitance :

100 MicroFarads

Positive Tolerance :

20%

Mounting Type :

Through Hole

Manufacturer :

NTE Electronics

Max Operating Temperature :

85 °C

Length :

95.25 mm

Diameter :

0.39

Lifetime @ Temp. :

1000 Hrs @ 85°C

Dielectric Material :

ALUMINUM (WET)

Polarization :

Bi-Polar

Height :

6.35 mm

Reach Compliance Code :

Unknown

Package / Case :

Axial, Can

Min Operating Temperature :

-40 °C

Height - Seated (Max) :

-

Size / Dimension :

0.394 Dia x 0.984 L (10.00mm x 25.00mm)

Applications :

GENERAL PURPOSE

Lead Spacing :

-

Number of Terminals :

2

Package :

Bag

Mount :

Through Hole

RoHS :

No

Polarity :

NON-POLARIZED

Weight :

113.398093 g

ECCN Code :

EAR99

Package Type :

Axial Round

Voltage - Rated :

25 V

Lead Length :

1.38

Lead Diameter :

0.024

Negative Tolerance :

20%

Ratings :

-

Width :

6.35 mm

Operating Temperature :

-40°C ~ 85°C

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Series :

NPA

Surface Mount Land Size :

-

Tolerance :

20 %

Rated (DC) Voltage (URdc) :

25 V

Composition :

Electrolytic
