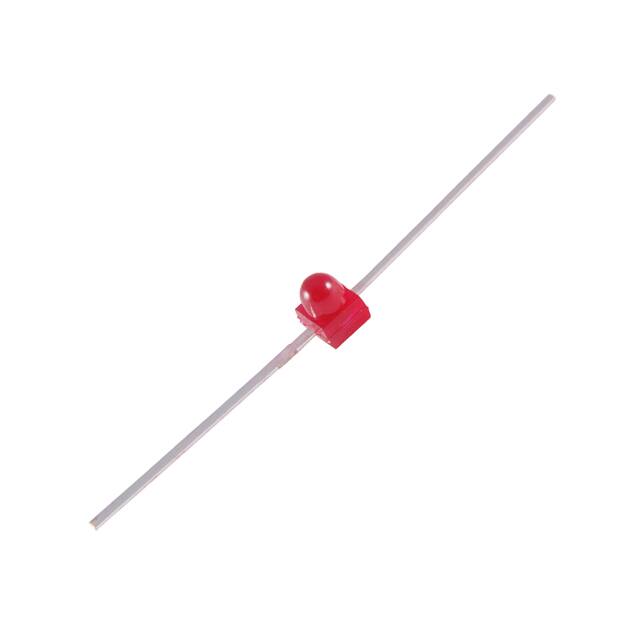

NTE3001

Manufacturer :

NTE Electronics, Inc.

Product Category :

Operating Temperature Classification :

Industrial

Wavelength - Peak :

640nm

Reach Compliance Code :

Compliant

Size / Dimension :

2.10mm L x 2.10mm W

Mounting Feature :

AXIAL MOUNT

Main Category :

Standard LED

Configuration :

Standard

Min Operating Temperature :

-40 °C

Mounting Type :

Through Hole, Axial

Lens Type :

Colored Diffused

Mount :

Surface Mount

Max Operating Temperature :

85 °C

T-code :

T-3/4

Terminal Finish :

Tin/Lead (Sn/Pb)

Mounting Orientation :

Top Mount

Maximum Forward Current :

30(mA)

Mounting :

Surface Mount

Emitting Color :

Red

Current - Test :

20mA

Optoelectronic Device Type :

SINGLE COLOR LED

Color :

Red

Number of Elements :

1

RoHS :

Compliant

Viewing Angle :

40(deg)

Number of Functions :

1

JESD-609 Code :

e0

Manufacturer :

NTE Electronics

Number of Pins :

2

Pbfree Code :

No

Forward Current-Max :

0.04 A

Power Dissipation :

100(W)

Number of Terminals :

2

Forward Voltage :

2.5(V)

HTS Code :

8541.40.20.00

Chip Material :

GaP

Peak Wavelength :

660(nm)

Millicandela Rating :

125mcd

Package Type :

SMD

Height (Max) :

2.70mm

Length :

152.4 mm

Wavelength - Dominant :

639nm

Subcategory :

Visible LEDs

Product Status :

Active

Rad Hardened :

No

Voltage - Forward (Vf) (Typ) :

2V

Size :

1.96 mm

Lens Color :

Red

Reverse Voltage :

5(V)

Shape Type :

Circular

Forward Voltage-Max :

1.6 V

Lens Size :

1.80mm Dia

Type :

Uni-Color

Number of LEDs :

1

Weight :

4.535924 g

Package / Case :

Axial, Flat Leads

Product Length (mm) :

2.54(mm)

Height :

6.35 mm

Operating Temp Range :

-40C to 85C

Pin Count :

2

Shape :

Round

Series :

-

Test Current (It) :

20(mA)

Lens Transparency :

Diffused

Additional Feature :

IC COMPATIBLE, HIGH RELIABILITY

Package :

Bag

Packing Method :

Bulk

Supplier Device Package :

-

Luminous Intensity :

150mcd

High Brightness :

No

Lens Style :

Colored, Diffused

Width :

101.6 mm

Product Height (mm) :

2.42(mm)

Overall Height :

2.42 mm

Surface Mount :

No

Features :

-

Lens Dimensions :

1.9x1.9x1.4(mm)
