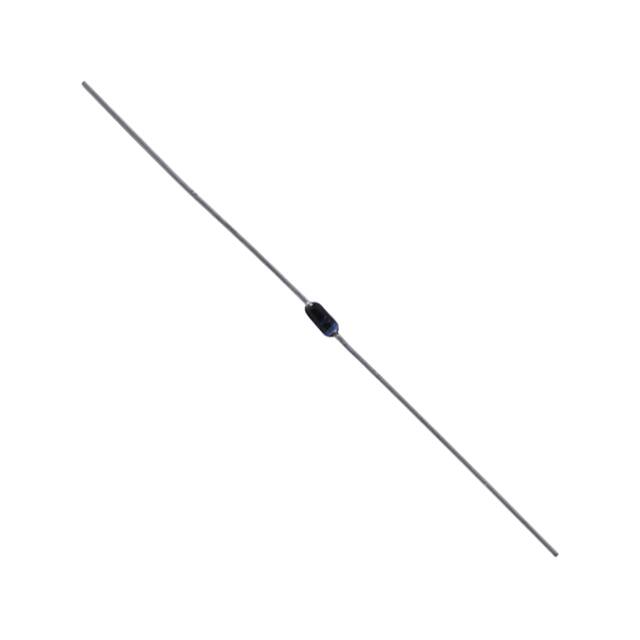

NTE5002A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Voltage Tol-Max :

5%

Number of Elements :

1

Impedance (Max) (Zzt) :

30 Ohms

Mounting Type :

Through Hole

Product Status :

Active

Package Shape :

Round

Test Current :

20 MilliAmps

Power - Max :

500 mV

Subcategory :

Voltage Reference Diodes

Reach Compliance Code :

Unknown

Number of Terminals :

2

Operating Temperature :

-65°C ~ 200°C

Tolerance :

5 Percent

Power Dissipation-Max :

0.5 W

Configuration :

Single

Voltage - Zener (Nom) (Vz) :

2.7 V

Diode Type :

ZENER DIODE

JESD-30 Code :

O-PALF-W2

Case Connection :

Isolated

Qualification Status :

Not Qualified

Series :

-

Manufacturer :

NTE Electronics

Surface Mount :

No

Package :

Bag

Wattage :

0.5

HTS Code :

8541.10.00.50

Polarity :

Unidirectional

Working Test Current :

20 mA

Forward Voltage :

1.1 Volts

ECCN Code :

EAR99

Terminal Position :

Axial

Terminal Form :

Wire

JEDEC-95 Code :

DO-35

Technology :

Zener

Supplier Device Package :

DO-35

Package / Case :

DO-204AH, DO-35, Axial

Diode Element Material :

SILICON
