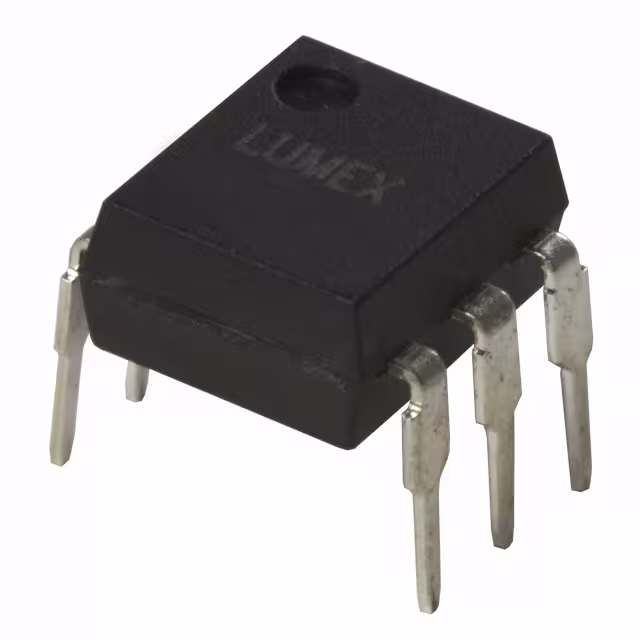

OCP-PCP116

Manufacturer :

Lumex, Inc.

Product Category :

Optoisolators - Logic Output

Operating Temperature :

-25°C~85°C

Number of Elements :

1

RoHS Status :

ROHS3 Compliant

Published :

2001

Propagation Delay :

15 µs

Output Type :

Open Collector

Rise / Fall Time (Typ) :

100ns 50ns

Mounting Type :

Through Hole

Hysteresis Ratio-Nom :

0.7

Forward Current-Max :

0.05A

Number of Channels :

1

Output Current per Channel :

50mA

Configuration :

Single

Propagation Delay tpLH / tpHL (Max) :

9μs, 15μs

Voltage - Forward (Vf) (Typ) :

1.2V

Package / Case :

6-DIP (0.300, 7.62mm)

Voltage - Supply :

4.5V~17V

Rise Time :

3μs

Voltage - Isolation :

5000Vrms

Lead Free :

Contains Lead

Input Type :

DC

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Inputs - Side 1/Side 2 :

1/0

Mount :

Through Hole

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tube

Factory Lead Time :

26 Weeks

On-State Current-Max :

0.05A
