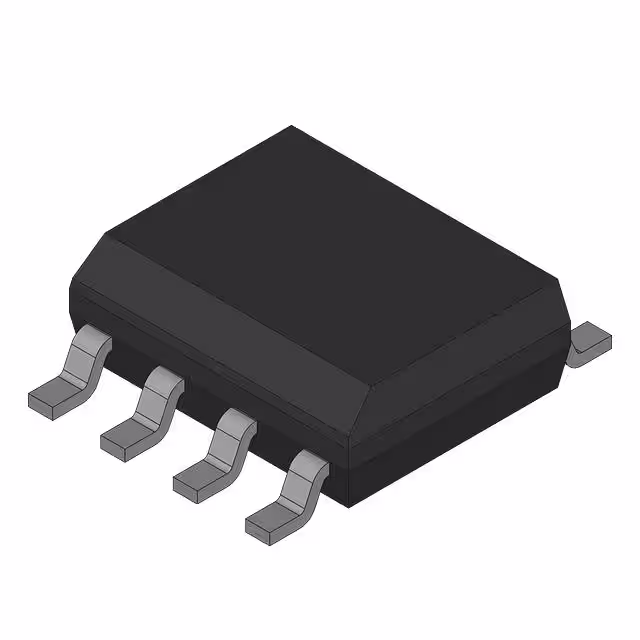

OP07ECSA
Or copy the link below:
- Mfr.Part #
- OP07ECSA
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- Datasheet
- Download
- Description
- IC OPAMP GP 1 CIRCUIT 8SOIC
- Stock
- 29,136
- In Stock ：
- 29,136
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Instrumentation, OP Amps, Buffer Amps
- Length :
- 4.9mm
- Terminal Form :
- Gull wing
- Pin Count :
- 8
- RoHS Status :
- RoHS Compliant
- Amplifier Type :
- Operational Amplifier
- Bias Current-Max (IIB) @25C :
- 0.004μA
- Gain Bandwidth Product :
- 600 kHz
- Architecture :
- VOLTAGE-FEEDBACK
- Unity Gain BW-Nom :
- 600 kHz
- Supply Current-Max :
- 4mA
- ECCN Code :
- EAR99
- Temperature Grade :
- COMMERCIAL
- Min Dual Supply Voltage :
- 3V
- Low-Offset :
- yes
- Common Mode Rejection Ratio :
- 106 dB
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- JESD-609 Code :
- e0
- Supply Voltage :
- 15V
- Average Bias Current-Max (IIB) :
- 0.0055μA
- Current - Input Bias :
- 4nA
- Number of Functions :
- 1
- Neg Supply Voltage-Nom (Vsup) :
- -15V
- Max Operating Temperature :
- 70°C
- JESD-30 Code :
- R-PDSO-G8
- Input Offset Voltage (Vos) :
- 75μV
- Number of Channels :
- 1
- Voltage Gain :
- 113.98dB
- Slew Rate :
- 0.3 V/µs
- Peak Reflow Temperature (Cel) :
- 245
- Frequency Compensation :
- yes
- Max Dual Supply Voltage :
- 18V
- Number of Terminations :
- 8
- Min Operating Temperature :
- 0°C
- Terminal Position :
- Dual
- Qualification Status :
- Not Qualified
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Surface Mount :
- yes
- Datasheets
- OP07ECSA
[Instrumentation, Analog Devices, Inc. OP07ECSA] Overview
The OP07ECSA, manufactured by Analog Devices, Inc., is an integrated circuit operational amplifier designed to deliver high performance in various applications. This versatile component is engineered to meet the demands of precision instrumentation and signal conditioning systems, providing reliable and accurate operation.
With its compact 8SOIC package and general-purpose circuit design, the OP07ECSA offers exceptional versatility and ease of integration into a wide range of electronic devices. Whether utilized in industrial equipment, medical instruments, or automotive systems, this op amp delivers consistent performance and robust functionality.
OP07ECSA Features
- Precision Operational Amplifier: The OP07ECSA is crafted to deliver precise amplification of input signals, ensuring accuracy in measurement and control applications.
- Low Offset Voltage: With a low offset voltage of [insert value], this IC minimizes errors in signal processing, enhancing the reliability and performance of electronic systems.
- Wide Supply Voltage Range: Supporting a wide supply voltage range of [insert range], the OP07ECSA accommodates diverse power requirements, making it suitable for various operating environments.
- High Gain Bandwidth: This operational amplifier boasts a high gain bandwidth, enabling efficient amplification of signals across a broad frequency spectrum.
- Low Input Bias Current: With low input bias current, the OP07ECSA reduces signal distortion and maintains signal integrity, ideal for precision applications.
- Compact 8SOIC Package: Housed in a compact 8SOIC package, this IC offers space-saving benefits and facilitates convenient integration into electronic designs.
OP07ECSA Applications
- Industrial Automation Systems: The OP07ECSA is widely used in industrial automation equipment for signal conditioning, motor control, and process monitoring. Its precision amplification capabilities ensure accurate measurement and control in demanding industrial environments.
- Medical Instruments: In medical instruments such as patient monitoring devices and diagnostic equipment, the OP07ECSA provides reliable signal amplification with low noise and high precision, contributing to accurate medical measurements and diagnostics.
- Automotive Electronics: Within automotive electronic systems, the OP07ECSA finds application in sensor signal conditioning, engine control units (ECUs), and safety systems. Its robust design and wide supply voltage range make it well-suited for automotive environments.
