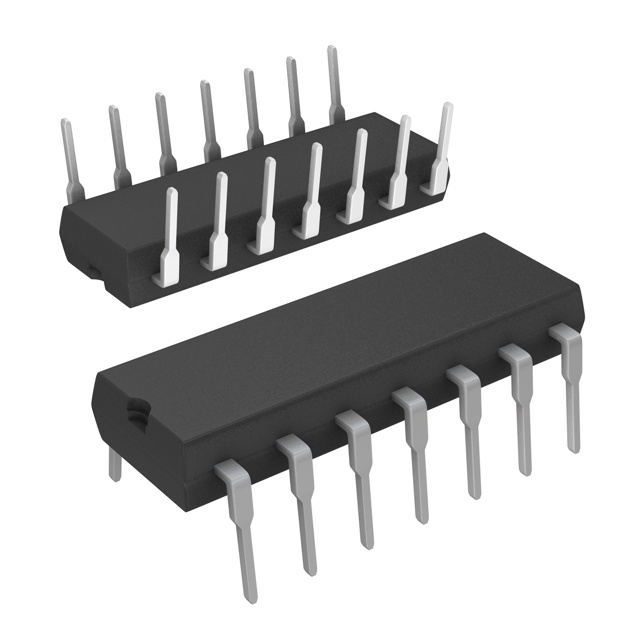

OP11GP

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Time@Peak Reflow Temperature-Max (s) :

30

Supply Voltage :

15V

Number of Terminations :

14

Reach Compliance Code :

not_compliant

Slew Rate :

1 V/µs

Supply Voltage Limit-Max :

22V

Average Bias Current-Max (IIB) :

0.8μA

Input Offset Voltage-Max :

6000μV

Qualification Status :

Not Qualified

Terminal Form :

THROUGH-HOLE

Package / Case :

DIP

Length :

19.305mm

ECCN Code :

EAR99

Width :

7.62mm

Bias Current-Max (IIB) @25C :

0.5μA

Height Seated (Max) :

5.33mm

Number of Functions :

4

Unity Gain BW-Nom :

3000 kHz

Common-mode Reject Ratio-Min :

70 dB

Voltage Gain-Min :

50000

Architecture :

VOLTAGE-FEEDBACK

JESD-609 Code :

e0

Power Supplies :

+-15V

Peak Reflow Temperature (Cel) :

240

Neg Supply Voltage-Max (Vsup) :

-22V

Operating Temperature (Max) :

85°C

Amplifier Type :

Operational Amplifier

Common Mode Rejection Ratio :

100 dB

RoHS Status :

Non-RoHS Compliant

Number of Pins :

14

Terminal Position :

Dual

Temperature Grade :

Industrial

Number of Channels :

4

Surface Mount :

No

Terminal Finish :

Tin/Lead (Sn85Pb15)

Low-Offset :

No

Frequency Compensation :

yes

Pin Count :

14

Neg Supply Voltage-Nom (Vsup) :

-15V
