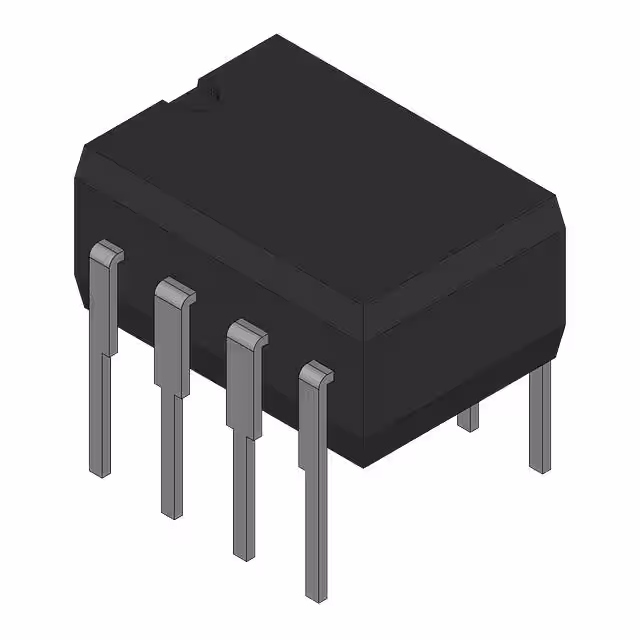

OP14AZ/883C

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Common Mode Rejection Ratio :

100 dB

Amplifier Type :

Operational Amplifier

Terminal Form :

THROUGH-HOLE

Temperature Grade :

Military

Screening Level :

MIL-STD-883

Operating Temperature (Max) :

125°C

JESD-609 Code :

e0

Average Bias Current-Max (IIB) :

0.06μA

Supply Voltage :

15V

Seated Height-Max :

5.08mm

Number of Terminals :

8

Operating Temperature (Min) :

-55°C

Terminal Position :

Dual

Terminal Pitch :

2.54mm

Number of Functions :

2

Slew Rate :

0.5 V/us

Moisture Sensitivity Level (MSL) :

Not Applicable

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

Non-RoHS Compliant

Input Offset Voltage-Max :

1500μV

Neg Supply Voltage-Nom (Vsup) :

-15V

Total Dose :

MIL-STD-883 V

Supply Voltage Limit-Max :

22V

JESD-30 Code :

R-GDIP-T8

Width :

7.62mm

Surface Mount :

No

Pin Count :

8

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Neg Supply Voltage-Max (Vsup) :

-22V

Terminal Finish :

TIN LEAD

Unity Gain BW-Nom :

1300 kHz
