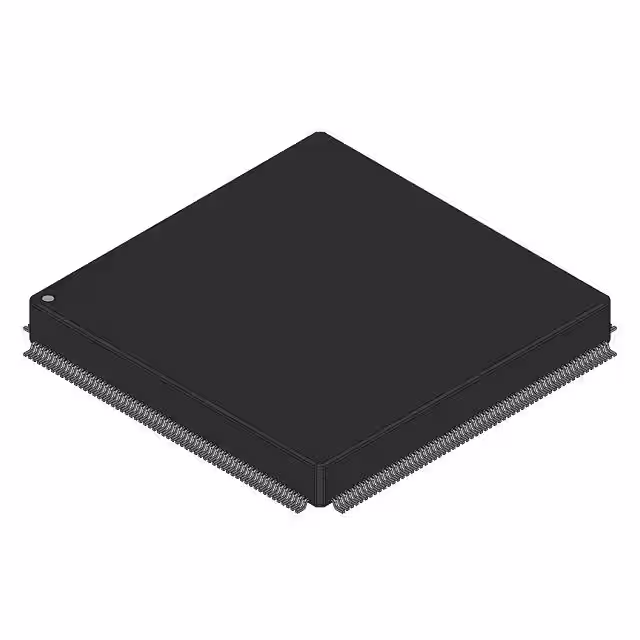

OR3T557PS240-DB

Manufacturer :

Lattice Semiconductor

Product Category :

FPGAs (Field Programmable Gate Array)

Number of I/O :

192

Surface Mount :

yes

HTS Code :

8542.39.00.01

Number of Equivalent Gates :

80000

Supply Voltage-Max (Vsup) :

3.6V

RoHS Status :

Non-RoHS Compliant

Temperature Grade :

COMMERCIAL

Operating Supply Voltage :

5V

Number of CLBs :

324

Min Operating Temperature :

0°C

Height Seated (Max) :

4.1mm

Max Operating Temperature :

70°C

Number of Outputs :

188

Terminal Form :

Gull wing

Terminal Finish :

Tin/Lead (Sn85Pb15)

Organization :

324 CLBS, 80000 GATES

Reach Compliance Code :

not_compliant

JESD-609 Code :

e0

Programmable Logic Type :

FIELD PROGRAMMABLE GATE ARRAY

Terminal Position :

QUAD

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Logic Blocks (LABs) :

1024

Length :

32mm

Terminal Pitch :

0.5mm

Number of Terminations :

240

Qualification Status :

Not Qualified

Power Supplies :

3.3V

Supply Voltage :

3.3V

Pin Count :

240

Combinatorial Delay of a CLB-Max :

1.05 ns

Width :

32mm

Number of Logic Cells :

2592

Number of Inputs :

188

ECCN Code :

EAR99

JESD-30 Code :

S-PQFP-G240
