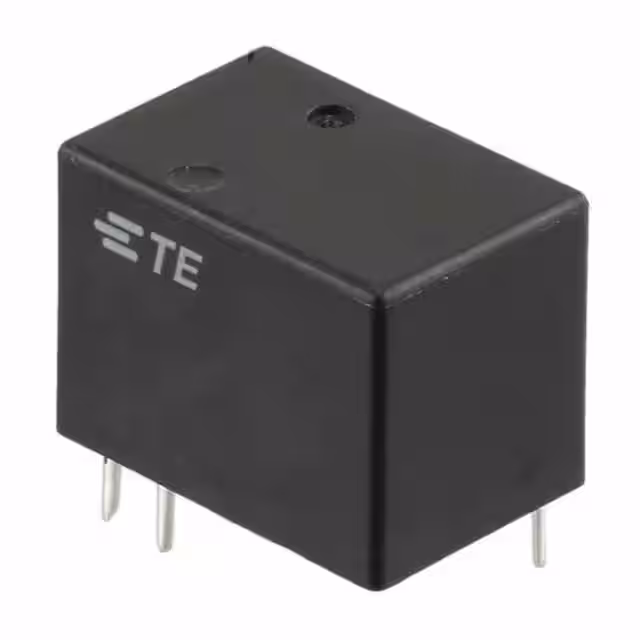

OUAZ-SH-112L,405
Or copy the link below:
- Mfr.Part #
- OUAZ-SH-112L,405
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY TELECOM SPDT 1A 12VDC
- Stock
- 1,714
- In Stock ：
- 1,714
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Signal Relays, Up to 2 Amps
- Coil Voltage :
- 12VDC
- Release Time :
- 7 ms
- Coil Insulation :
- -
- Coil Voltage DC :
- 12
- Features :
- -
- Coil Current :
- 17(mA)
- Product Status :
- Active
- Must Release Voltage :
- 1.2 VDC
- Product Category :
- Low Signal Relays - PCB
- Subcategory :
- Relays
- Voltage Rating (VDC) :
- 60(V)
- Type :
- Sensitive
- Relay Type :
- Telecom
- Manufacturer :
- TE Connectivity
- Dropout Volt :
- 1.2VDC
- Power Consumption :
- 200 mW
- Must Operate Voltage :
- 9 VDC
- Maximum Power Rating :
- 30W/120VA
- Product Depth (mm) :
- 10.4(mm)
- Coil Suppression Diode :
- No
- Pin Count :
- 5
- Product Height (mm) :
- 11.2(mm)
- Brand :
- TE Connectivity / OEG
- Product Length (mm) :
- 15.4(mm)
- Contact Arrangement :
- SPDT
- Operate Time :
- 10(ms)
- Operating Temp Range :
- -30C to 75C
- LED Indicator :
- No
- Product Type :
- PCB Relays
- Product :
- Power Relays
- Switching Voltage :
- 120VAC, 24VDC - Max
- Pick-up Voltage (Max) :
- 9VDC
- Seal Rating :
- Sealed - Fully
- Series :
- OUAZ, OEG
- RoHS :
- Details
- Contact Rating (Current) :
- 1 A
- Termination Style :
- PC Pin
- Contact Termination :
- Solder Pin
- Base Product Number :
- OUAZ-SH
- Package :
- Tube
- Mounting Type :
- Through Hole
- Contact Material :
- Silver Palladium (AgPd), Gold (Au)
- Mounting Style :
- Through Hole
- Operating Temperature :
- -30°C ~ 70°C
- Packaging :
- Tube
- Coil Type :
- Non Latching
- Relay Construction :
- Non-Latching
- Rad Hardened :
- No
- Coil Resistance :
- 700(ohm)
- Seal :
- Sealed
- Voltage Rating (VAC) :
- 120(V)
- Contact Current Rating :
- 1(A)
- Contact Form :
- 1 Form C
- Datasheets
- OUAZ-SH-112L,405
