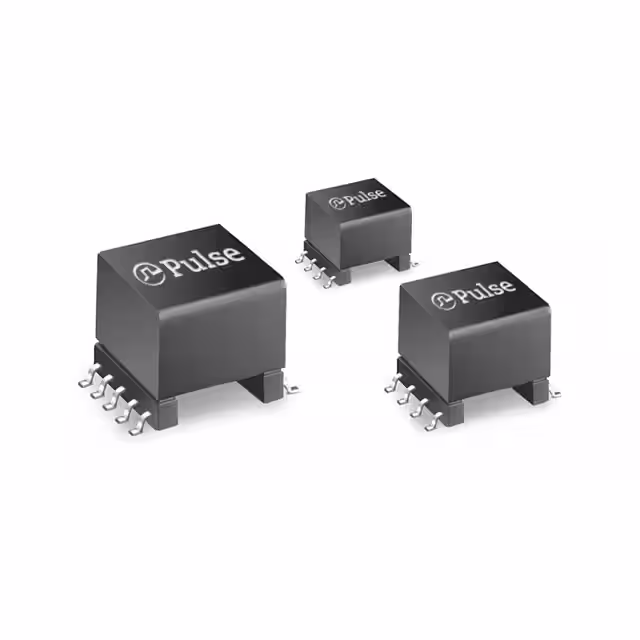

PA1137NL
Or copy the link below:
- Mfr.Part #
- PA1137NL
- Manufacturer
- Pulse Electronics
- Package / Case
- Datasheet
- Download
- Description
- XFMR FLYBACK EP13 SMT
- Stock
- 642
- In Stock ：
- 642
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Pulse Electronics
- Product Category :
- Pulse Transformers
- Mounting :
- Surface Mount
- Primary Side Connection :
- Series
- Product Type :
- Audio and Signal Transformers
- ET (Volt-Time) :
- -
- Turns Ratio :
- 1:0.125:0.208
- Lead Style :
- Gull wing
- Size / Dimension :
- 0.551 L x 0.516 W (14.00mm x 13.11mm)
- Inductance :
- 126µH
- High Potential :
- 1500 Vrms
- Product Status :
- Active
- Weight :
- -
- Transformer Type :
- Flyback
- Packaging :
- Tray
- Product :
- POE - Power Over Ethernet Transformers
- Subcategory :
- Transformers
- Manufacturer :
- Pulse
- Primary Configuration :
- Single+Auxilary
- Brand :
- Pulse Electronics
- Pin Count :
- 10
- Secondary Configuration :
- Single
- Turns Ratio - Primary:Secondary :
- 1:0.125:0.208
- Product Category :
- Power Transformers
- Operating Temperature :
- -40 to 130 °C
- RoHS :
- Details
- Height - Seated (Max) :
- 0.485 (12.32mm)
- Power Rating :
- 13.5 W
- Mounting Type :
- Surface Mount
- Datasheets
- PA1137NL
PA1137NL datasheet pdf and Power Transformers product details from Pulse stock available at
