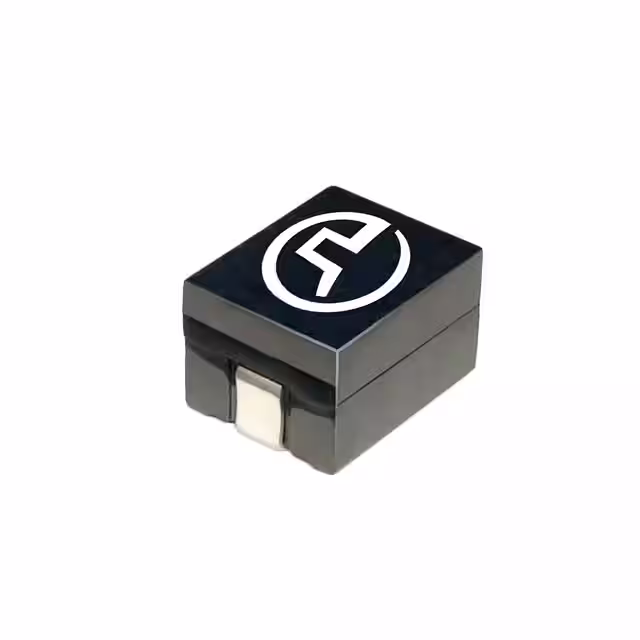

PA2202.211NLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Frequency - Self Resonant :

--

RoHS Status :

RoHS Compliant

Current Rating (Amps) :

36 A

Terminal Shape :

J BEND

Terminal Placement :

DUAL ENDED

Product :

Power Inductors

Current - Saturation (Isat) :

53A

Material - Core :

--

Series :

PA2202.XXXNL

Current - Saturation :

53A

Pbfree Code :

yes

Ratings :

--

DC Resistance (DCR) :

0.48mOhm

Max DC Current :

36A

Number of Terminations :

2

Shape/Size Description :

RECTANGULAR PACKAGE

Shielding :

No

Mounting Type :

Surface Mount

Minimum Operating Temperature :

- 40 C

Type :

--

Application :

RF

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

0.236 6.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS :

Details

Size / Dimension :

0.476Lx0.394W 12.10mmx10.00mm

Factory Lead Time :

9 Weeks

Brand :

Pulse Electronics

Height - Seated (Max) :

0.236 (6.00mm)

Package / Case :

Nonstandard

Mounting Style :

PCB Mount

Tolerance :

±15%

Number of Functions :

1

Inductor Application :

POWER INDUCTOR

Maximum Operating Temperature :

+ 130 C

Inductance :

215nH

ECCN Code :

EAR99

Termination Style :

SMD/SMT

Case/Size Code :

4839

Package :

Tape and Reel (TR)

Width :

10 mm

Q @ Freq :

--

HTS Code :

8504.50.80.00

Current Rating :

36A

Height :

6mm

Radiation Hardening :

No

Manufacturer :

Pulse

Supplier Device Package :

--

Product Category :

Power Inductors - SMD

Product Type :

Fixed Inductors

Inductor Type :

GENERAL PURPOSE INDUCTOR

Product Status :

Active

Operating Temperature :

-40°C~130°C

Subcategory :

Inductors, Chokes and Coils

Length :

12.1 mm

Depth :

10mm

Features :

--

Saturation Current :

53 A
