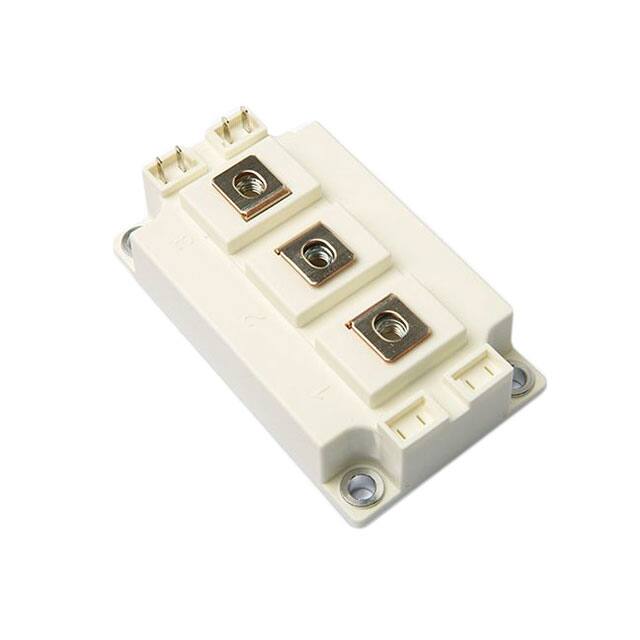

PAA12400BM3

Manufacturer :

PN Junction Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Arrays

Package / Case :

Module

Vgs(th) (Max) @ Id :

5V @ 100mA

Gate Charge (Qg) (Max) @ Vgs :

-

Input Capacitance (Ciss) (Max) @ Vds :

29.5pF @ 1000V

Product Status :

Active

Package :

Tray

Power - Max :

-

Current - Continuous Drain (Id) @ 25°C :

350A

FET Feature :

Silicon Carbide (SiC)

Drain to Source Voltage (Vdss) :

1200V (1.2kV)

Operating Temperature :

-40°C ~ 175°C (TJ)

Supplier Device Package :

Module

Series :

-

Rds On (Max) @ Id, Vgs :

7.3mOhm @ 300A, 20V

FET Type :

2 N-Channel (Half Bridge)

Mounting Type :

Chassis Mount
