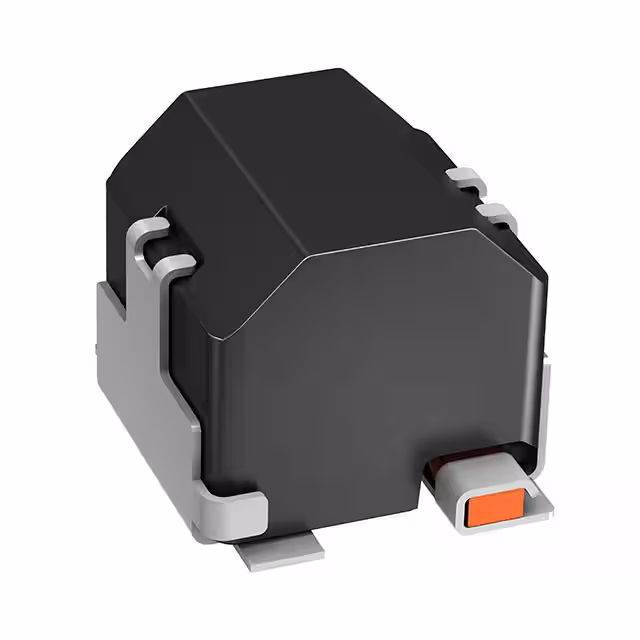

PCM120T-1R5N-D

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Saturation Current :

32.2 A

Manufacturer :

EPCOS / TDK

Brand :

EPCOS / TDK

Shielding :

Shielded

Core Material :

Metal

Supplier Device Package :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Style :

PCB Mount

DC Resistance (DCR) :

1.45Ohm

Current Rating (Amps) :

35.2 A

Height :

11.5 mm

Termination Style :

SMD/SMT

Package / Case :

Nonstandard

Material - Core :

Metal

Length :

12.7 mm

Packaging :

MouseReel

Inductance :

1.5μH

Q @ Freq :

-

Product Height :

11.5mm

Features :

-

RoHS :

Details

Ratings :

AEC-Q200

Termination :

Standard

Product Status :

Active

Series :

PCM120T

Maximum Operating Temperature :

+ 165 C

Inductance Tolerance :

± 30%

Width :

12 mm

Product Width :

13.1mm

Height - Seated (Max) :

0.453 (11.50mm)

Mounting Type :

Surface Mount

Product Category :

Power Inductors - SMD

Current - Saturation (Isat) :

32.2A

Inductance Frequency - Test :

100 kHz

RMS Current (Irms) :

35.2A

Product Length :

12.4mm

Operating Temperature :

-55°C ~ 165°C

Tolerance :

30 %

Size / Dimension :

0.472 L x 0.500 W (12.00mm x 12.70mm)

Product Type :

Fixed Inductors

Frequency - Self Resonant :

-

Qualification :

AEC-Q200

Type :

Drum Core, Wirewound

Subcategory :

Inductors, Chokes and Coils

Minimum Operating Temperature :

- 55 C

Test Frequency :

100 MHz

Product :

Power Inductors
