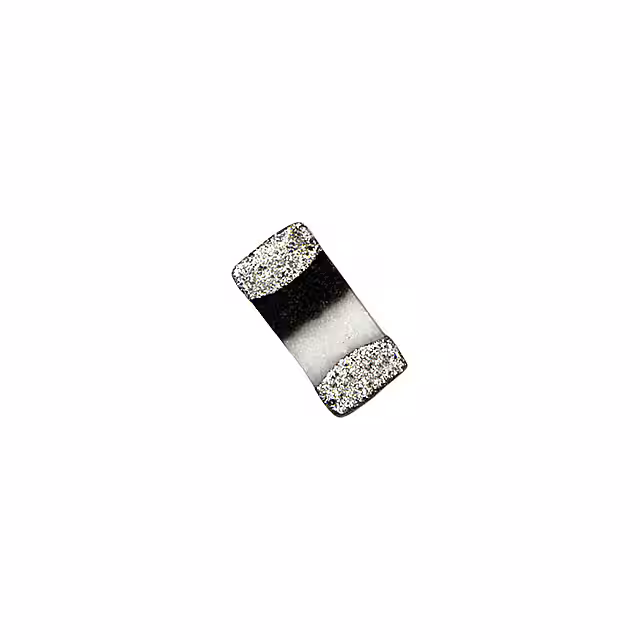

PE-0402CL820JTT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Shielding :

Unshielded

Termination :

Standard

Supplier Device Package :

0402

Core Material :

Ceramic

Length :

1 mm

Frequency - Self Resonant :

750MHz

Ratings :

-

Width :

0.5 mm

Minimum Operating Temperature :

- 55 C

Application :

RF

Brand :

Pulse Electronics

Maximum Operating Temperature :

+ 125 C

DC Resistance (DCR) :

2.4Ohm Max

Mounting Style :

PCB Mount

Package :

Digi-Reel?

Current - Saturation (Isat) :

-

Diameter :

-

Package / Case :

0402 (1005 Metric)

Manufacturer :

Pulse

Self Resonant Frequency :

750 MHz

Features :

-

Mounting Type :

Surface Mount

Packaging :

MouseReel

Product Status :

Active

Product Category :

RF Inductors - SMD

Size / Dimension :

0.039" L x 0.020" W (1.00mm x 0.50mm)

Height - Seated (Max) :

0.022" (0.55mm)

Material - Core :

Ceramic

Type :

Multilayer

Test Frequency :

100 MHz

Termination Style :

SMD/SMT

Operating Temperature :

-55°C ~ 125°C

Inductance Frequency - Test :

100 MHz

Current Rating (Amps) :

150 mA

Product Type :

Fixed Inductors

Tolerance :

±5%

Subcategory :

Inductors, Chokes and Coils

Saturation Current :

-

Series :

PE-0402CL

Q @ Freq :

8 @ 100MHz

Product :

RF Inductors

Inductance :

82 nH

RoHS :

Details

Height :

0.5 mm
