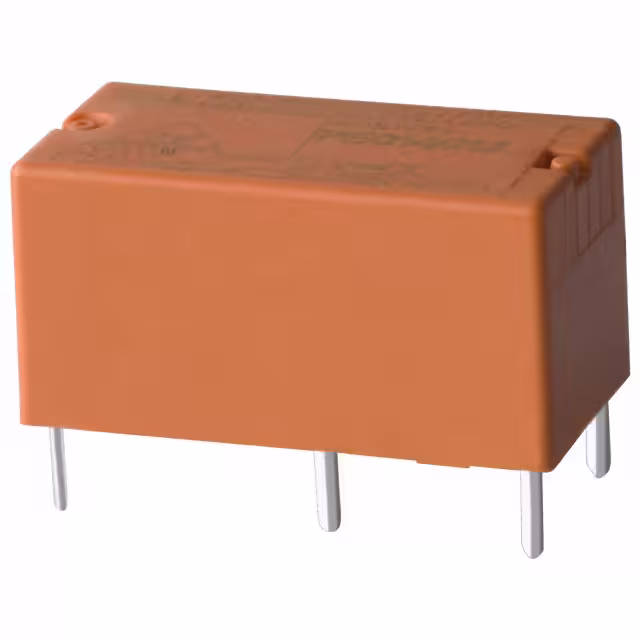

PE014005
Or copy the link below:
- Mfr.Part #
- PE014005
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 5A 5V
- Stock
- 2,688
- In Stock ：
- 2,688
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Product Length (mm) :
- 20(mm)
- Package :
- Tube
- Must Operate Voltage :
- 3.8 VDC
- Contact Material :
- Silver Nickel (AgNi)
- Operating Temperature :
- -40°C ~ 85°C
- Length :
- 20mm
- Coil Voltage DC :
- 5
- Dropout Volt :
- 0.5VDC
- Release Time :
- 8ms
- Switching Voltage :
- 400VAC - Max
- Operate Time :
- 8ms
- Product :
- Power Relays
- Coil Voltage :
- 5VDC
- Voltage Rating (VAC) :
- 400(V)
- Rad Hardened :
- No
- Number of Poles :
- 1
- Contact Rating (Current) :
- 5A
- Turn On Voltage (Max) :
- 3.8 VDC
- Width :
- 10 mm
- Height :
- 10mm
- Seal Rating :
- Sealed - Flux Protection
- Contact Termination :
- Solder Pin
- Brand :
- TE Connectivity / PandB
- Termination Style :
- PC Pin
- LED Indicator :
- No
- Application :
- PCB
- Seal :
- FLUX SEALED
- Maximum Power Rating :
- 1.25KVA
- Coil Suppression Diode :
- No
- Coil Type :
- Non Latching
- Relay Type :
- GENERAL PURPOSE
- Power Consumption :
- 200 mW
- RoHS :
- Details
- Pick-up Voltage (Max) :
- 3.8VDC
- Series :
- PE, SCHRACK
- Manufacturer :
- TE Connectivity
- Relay Construction :
- Non-Latching
- Packaging :
- Tube
- Contact Arrangement :
- SPDT
- Contact Form :
- SPDT (1 Form C)
- Depth :
- 10mm
- Coil Insulation :
- -
- Switching Current :
- 5A
- Product Depth (mm) :
- 10(mm)
- Product Status :
- Active
- Terminal Type :
- Through Hole
- Mounting Type :
- Through Hole
- Coil Resistance :
- 125 Ohms
- Type :
- Miniature PCB Relay
- Turn Off Voltage (Min) :
- 0.5 VDC
- Pin Count :
- 5
- Mounting Style :
- Through Hole
- Product Type :
- General Purpose Relays
- Coil Power :
- 200 mW
- Features :
- Sealed - Flux Protection
- Base Product Number :
- PE01
- Product Height (mm) :
- 10(mm)
- Product Category :
- General Purpose Relays
- Must Release Voltage :
- 0.5 VDC
- Subcategory :
- Relays
- Operating Temp Range :
- -40C to 85C
- Contact Configuration :
- SPDT
- Contact Current Rating :
- 5(A)
- Coil Current :
- 40.0mA
- Datasheets
- PE014005
PE014005 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
