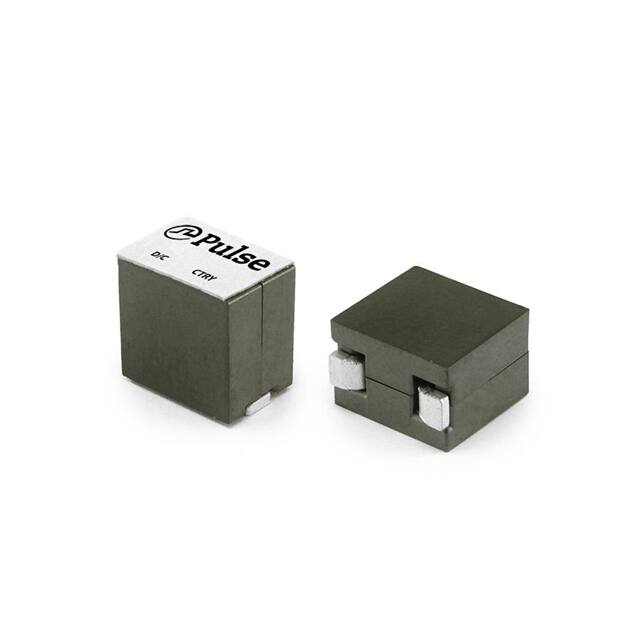

PG1712.151HLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Mounting Type :

Surface Mount

Minimum Operating Temperature :

- 40 C

Height :

9.3 mm

Diameter :

-

Height - Seated (Max) :

0.323 (8.20mm)

Saturation Current :

75 A

Type :

Power Choke

Self Resonant Frequency :

-

Termination :

Standard

Maximum Operating Temperature :

+ 130 C

Tolerance :

10 %

RoHS :

Details

Ratings :

-

Operating Temperature :

-40°C ~ 130°C

Shielding :

Shielded

Inductance Frequency - Test :

100 kHz

Inductance :

150 nH

Features :

-

Test Frequency :

100 kHz

Product Status :

Active

Subcategory :

Inductors, Chokes and Coils

DC Resistance (DCR) :

0.17mOhm

Size / Dimension :

0.425 L x 0.323 W (10.80mm x 8.20mm)

Packaging :

Cut Tape

Core Type :

Molded

Series :

PG1712

Current Rating (Amps) :

65 A

Manufacturer :

Miscellaneous

Width :

6.4 mm

Brand :

Pulse Electronics

Package / Case :

9.6 mm x 6.4 mm x 9.3 mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Style :

PCB Mount

Q @ Freq :

-

Frequency - Self Resonant :

-

Product Category :

Power Inductors - SMD

Product :

Power Inductors

Application :

Power

Material - Core :

-

Termination Style :

SMD/SMT

Current - Saturation (Isat) :

75A

Supplier Device Package :

-

Product Type :

Fixed Inductors

Length :

9.6 mm
