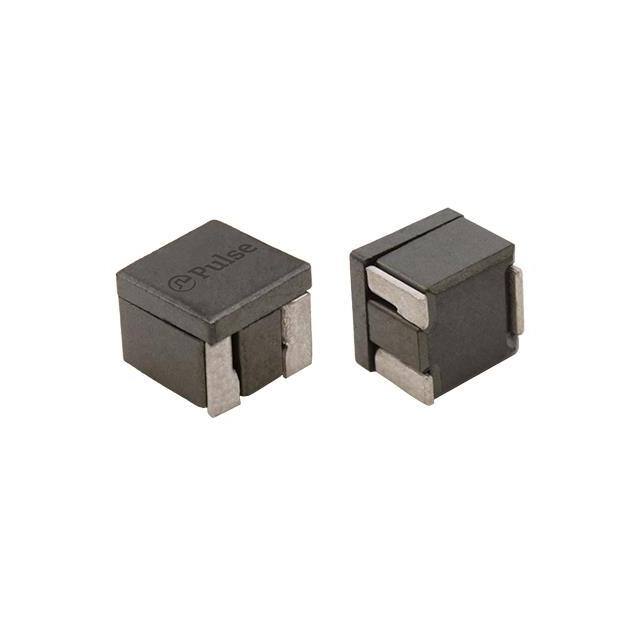

PGL6477.121HLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Application :

Power

Manufacturer :

Pulse

Mounting Style :

PCB Mount

Product Type :

Fixed Inductors

Maximum Operating Temperature :

+ 125 C

Shielding :

Unshielded

Subcategory :

Inductors, Chokes and Coils

Width :

6.2 mm

Height :

5.2 mm

Q @ Freq :

-

Core Type :

Molded

Current - Saturation (Isat) :

43A

Material - Core :

-

Size / Dimension :

0.244" L x 0.244" W (6.20mm x 6.20mm)

Inductance Frequency - Test :

100 kHz

Inductance :

117 nH

Termination :

Standard

Frequency - Self Resonant :

-

Tolerance :

±15%

Current Rating (Amps) :

22 A

Minimum Operating Temperature :

- 40 C

Ratings :

-

Termination Style :

SMD/SMT

Series :

PGL6477.XXXHL

Supplier Device Package :

3-SMD

Package :

Digi-Reel?

Saturation Current :

43 A

Features :

-

Product :

Power Inductors

Length :

6.2 mm

Type :

-

Height - Seated (Max) :

0.213" (5.40mm)

DC Resistance (DCR) :

400mOhm

Operating Temperature :

-40°C ~ 125°C

Mounting Type :

Surface Mount

Packaging :

MouseReel

Brand :

Pulse Electronics

Product Category :

Power Inductors - SMD

Package / Case :

Nonstandard, 3 Lead

Product Status :

Active

RoHS :

Details

Test Frequency :

100 kHz
