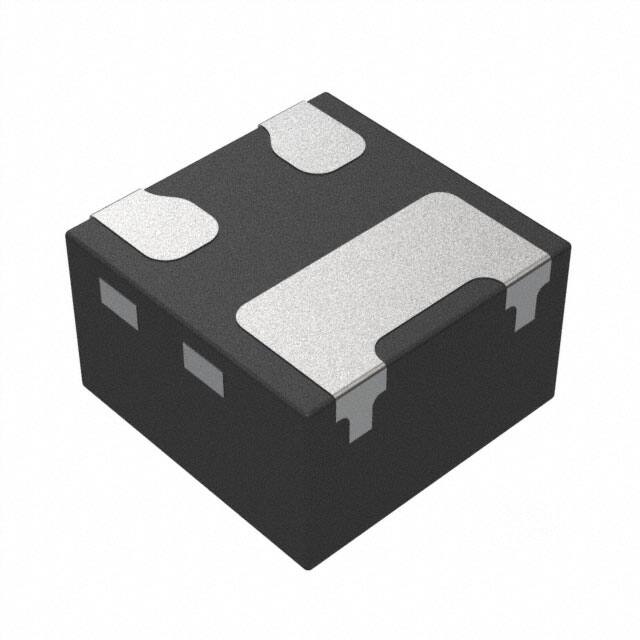

PMH850UPEH

Manufacturer :

Nexperia

Product Category :

Transistors - FETs, MOSFETs - Single

Channel Type :

P Channel

Transistor Type :

1 P-Channel

Manufacturer :

Nexperia

Mounting Type :

Surface Mount

Brand :

Nexperia

Maximum Operating Temperature :

+ 150 C

Base Product Number :

PMH850

Channel Mode :

Enhancement

Minimum Operating Temperature :

- 55 C

Power Dissipation (Max) :

660mW (Ta), 2.23W (Tc)

Series :

Automotive, AEC-Q101, TrenchMOS?

Continuous Drain Current Id :

600mA

Qualification :

-

Configuration :

Single

Product Type :

MOSFET

MSL :

MSL 1 - Unlimited

Product Status :

Active

Subcategory :

MOSFETs

Packaging :

MouseReel

Transistor Polarity :

P-Channel

FET Feature :

-

Mounting Style :

SMD/SMT

Drain to Source Voltage (Vdss) :

30 V

Package :

Digi-Reel?

Vgs(th) (Max) @ Id :

950mV @ 250μA

Product Category :

MOSFET

FET Type :

P-Channel

Gate Charge (Qg) (Max) @ Vgs :

0.9 nC @ 4.5 V

Vgs (Max) :

±8V

Input Capacitance (Ciss) (Max) @ Vds :

62.2 pF @ 15 V

Number of Channels :

1 Channel

Rds On (Max) @ Id, Vgs :

1Ohm @ 500mA, 4.5V

Power Dissipation :

360mW

RoHS :

Details

Operating Temperature :

-55°C ~ 150°C (TJ)

Supplier Device Package :

DFN0606-3

Rise Time :

2 ns

Current - Continuous Drain (Id) @ 25°C :

600mA (Ta)

Package / Case :

3-XFDFN

Drive Voltage (Max Rds On, Min Rds On) :

1.5V, 4.5V
