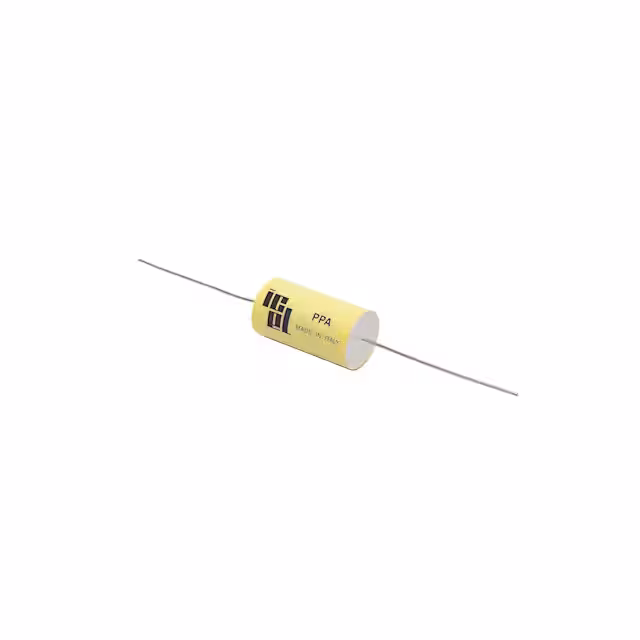

PPA2124100KS

Manufacturer :

Nichicon

Product Category :

Film Capacitors

Manufacturer :

Nichicon

Product Status :

Active

ESR (Equivalent Series Resistance) :

4.5 mOhms

Type :

Cylindrical

Termination :

PC Pins

Operating Temperature :

-40°C ~ 85°C

Voltage Rating - DC :

1200V (1.2kV)

Maximum Operating Temperature :

+ 85 C

Package :

Bulk

Series :

PPA

Features :

-

Termination Style :

Axial

Product Type :

Film Capacitors

Minimum Operating Temperature :

- 40 C

Packaging :

Bulk

Voltage Rating - AC :

550V

Lead Diameter :

1.2 mm

Dielectric :

Polypropylene (PP)

Height - Seated (Max) :

-

Product Category :

Film Capacitors

Subcategory :

Capacitors

Size / Dimension :

1.181" Dia x 1.732" L (30.00mm x 44.00mm)

Capacitance :

1 µF

Lead Spacing :

-

Product :

Snubber Film Capacitors

Brand :

Nichicon

Tolerance :

±10%

Mounting Type :

Through Hole

ESR :

4.5 mOhms

Ratings :

-

Dielectric Material :

Polypropylene (PP), Metallized

Number of Pins :

2 Pin

RoHS :

Details

Length :

57 mm

Package / Case :

Axial

Applications :

High Frequency, Switching; High Pulse, DV/DT; Snubber

Lead Style :

Straight

Diameter :

23.5 mm
