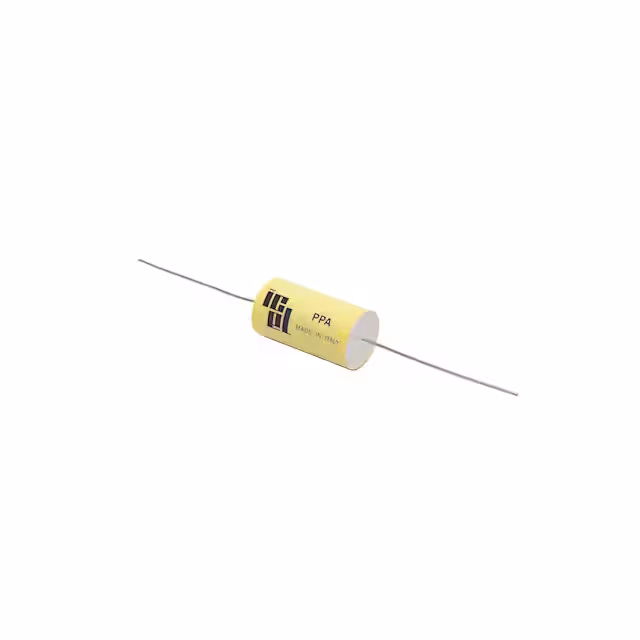

PPA2152680KG
Or copy the link below:
- Mfr.Part #
- PPA2152680KG
- Manufacturer
- Nichicon
- Package / Case
- Axial
- Datasheet
- Download
- Description
- FILM CAP CYLINDRICAL AXIAL
- Stock
- 3,043
- In Stock ：
- 3,043
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nichicon
- Product Category :
- Film Capacitors
- Operating Temperature :
- -40°C ~ 85°C
- Height - Seated (Max) :
- -
- Lead Style :
- Straight
- Product Type :
- Film Capacitors
- Mounting Type :
- Through Hole
- Applications :
- High Frequency, Switching; High Pulse, DV/DT; Snubber
- Ratings :
- -
- Termination :
- PC Pins
- Length :
- 27 mm
- ESR :
- 12.4 MOhms
- Number of Pins :
- 2 Pin
- Voltage Rating - DC :
- 1500V (1.5kV)
- Packaging :
- Bulk
- Brand :
- Nichicon
- Size / Dimension :
- 0.551" Dia x 1.063" L (14.00mm x 27.00mm)
- Capacitance :
- 0.068 μF
- Package :
- Bulk
- Features :
- -
- Lead Spacing :
- -
- Product :
- Snubber Film Capacitors
- Manufacturer :
- Nichicon
- Product Category :
- Film Capacitors
- Series :
- PPA
- Package / Case :
- Axial
- Dielectric :
- Polypropylene (PP)
- ESR (Equivalent Series Resistance) :
- 12.4 MOhms
- Subcategory :
- Capacitors
- Lead Diameter :
- 0.8 mm
- Termination Style :
- Axial
- Minimum Operating Temperature :
- - 40 C
- Maximum Operating Temperature :
- + 85 C
- RoHS :
- Details
- Type :
- Cylindrical
- Product Status :
- Active
- Diameter :
- 14 mm
- Voltage Rating - AC :
- 600V
- Tolerance :
- ±10%
- Dielectric Material :
- Polypropylene (PP), Metallized
- Datasheets
- PPA2152680KG
PPA 0.068 μF Film Capacitor ±10% Axial PC Pins Polypropylene (PP), Metallized
PPA2152680KG Overview
This device has 12.4 mOhms ESR (Equivalent Series Resistance).Electrical devices such as this have a lead spacing of -.In addition to operating at -40°C ~ 85°C degrees, the device is capable of operating at other temperatures as well.
PPA2152680KG Features
12.4 mOhms equivalent series resistance (ESR)
PPA2152680KG Applications
There are a lot of Nichicon
PPA2152680KG applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
