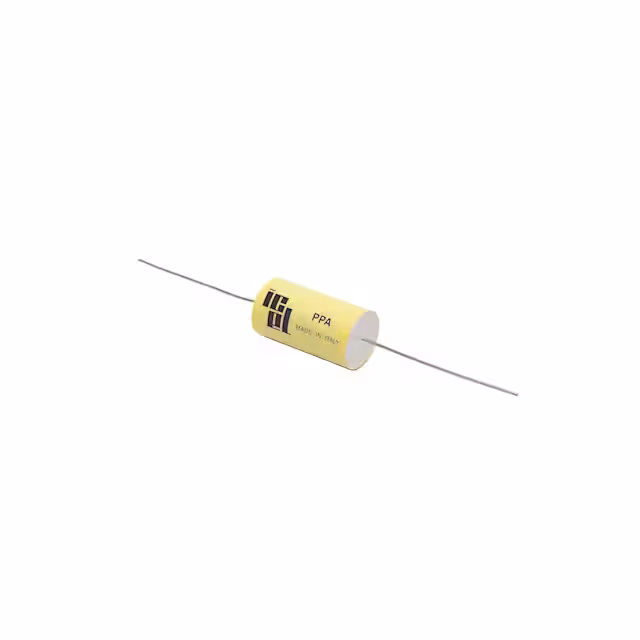

PPA2154120KS

Manufacturer :

Nichicon

Product Category :

Film Capacitors

Termination :

PC Pins

Type :

Cylindrical

Product Status :

Active

Product Category :

Film Capacitors

Product :

Snubber Film Capacitors

Features :

-

RoHS :

Details

Manufacturer :

Nichicon

Minimum Operating Temperature :

- 40 C

Lead Style :

Straight

Termination Style :

Axial

Maximum Operating Temperature :

+ 85 C

ESR (Equivalent Series Resistance) :

3.7 mOhms

Diameter :

31.5 mm

Packaging :

Bulk

Ratings :

-

Number of Pins :

2 Pin

Lead Diameter :

1.2 mm

Lead Spacing :

-

Voltage Rating - AC :

600V

Product Type :

Film Capacitors

Dielectric :

Polypropylene (PP)

Series :

PPA

Package :

Bulk

Length :

57 mm

Capacitance :

1.2 µF

Dielectric Material :

Polypropylene (PP), Metallized

Brand :

Nichicon

ESR :

3.7 mOhms

Package / Case :

Axial

Mounting Type :

Through Hole

Voltage Rating - DC :

1500V (1.5kV)

Tolerance :

±10%

Operating Temperature :

-40°C ~ 85°C

Subcategory :

Capacitors

Size / Dimension :

1.319" Dia x 2.087" L (33.50mm x 53.00mm)

Applications :

High Frequency, Switching; High Pulse, DV/DT; Snubber

Height - Seated (Max) :

-
