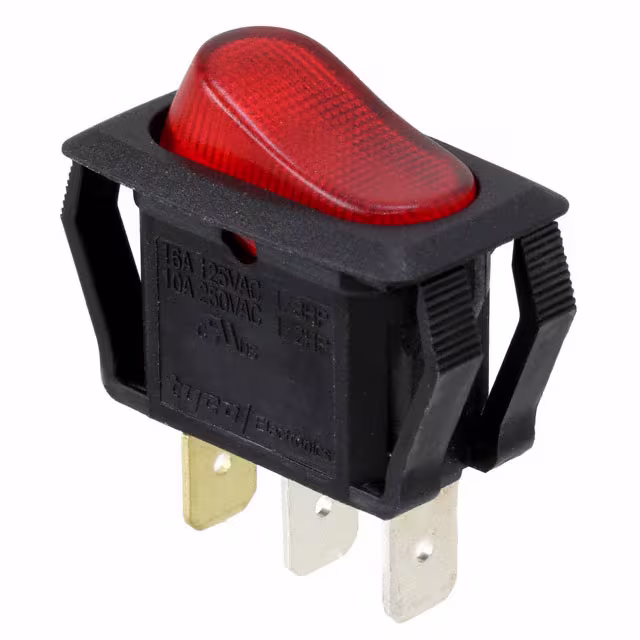

PRBSB1-16F-BR000
Or copy the link below:
- Mfr.Part #
- PRBSB1-16F-BR000
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROCKER SPST 16A 125V
- Stock
- 10,322
- In Stock ：
- 10,322
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Current Rating (Amps) :
- 16A (AC)
- Brand :
- TE Connectivity / Alcoswitch
- AC Voltage Rating (Max) :
- 250
- Product Height (mm) :
- 35.3(mm)
- Circuit :
- SPST
- Housing Material :
- N/A/Nylon 6/6
- Product :
- Rocker Switches
- Operating Temperature Max Deg. C :
- 85C
- Contact Form :
- SPST
- Color - Actuator/Cap :
- Red
- Product Category :
- Rocker Switches
- Current Rating :
- 16A (AC)
- Illumination Type :
- Neon Lamp
- Mounting Style :
- Panel
- Panel Cutout Dimensions :
- Rectangular - 27.60mm x 13.80mm
- Product Type :
- Rocker Switches
- Product Status :
- Active
- Contact Plating :
- Silver
- Illumination Color :
- -
- Mounting Type :
- Panel Mount, Snap-In
- Voltage Rating - AC :
- 125V
- Illumination Voltage (Nominal) :
- 110 VAC
- Switch Configuration :
- ON OFF
- Ingress Protection :
- --
- Base Product Number :
- PRBSB1
- Illumination Type, Color :
- Neon, Red
- Operating Temp Range :
- -20C to 85C
- Manufacturer :
- TE Connectivity
- Actuator Type :
- Concave (Curved) - Illuminated
- Contact Material :
- Silver Tin Oxide
- Switch Function :
- On-Off
- Mechanical Life :
- 100,000 Cycles
- Actuator Material :
- Polycarbonate
- Operating Temperature :
- -20°C ~ 85°C
- Product Length (mm) :
- 31.5(mm)
- Terminal Type :
- Quick Connect
- Package :
- Bulk
- Features :
- --
- Subcategory :
- Switches
- Series :
- PRB
- Current Rating (Max) :
- 16(A)
- Packaging :
- Bulk
- Actuator Style :
- Curved Rocker
- Electrical Life :
- 6,000 Cycles
- RoHS :
- Details
- Lamp Type :
- -
- Actuator Marking :
- No Marking
- Compliance :
- UL
- Operating Temperature Min Deg. C :
- -20C
- Pole Throw Configuration :
- SPST
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- Product Depth (mm) :
- 18.5(mm)
- Actuator :
- ROCKER
- Datasheets
- PRBSB1-16F-BR000
PRBSB1-16F-BR000 datasheet pdf and Rocker Switches product details from TE Connectivity stock available at
