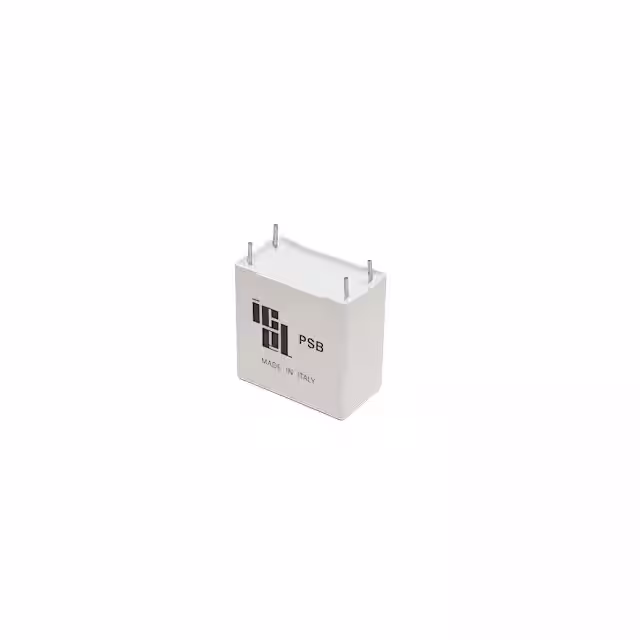

PSB2123470KHL

Manufacturer :

Nichicon

Product Category :

Film Capacitors

Brand :

Nichicon

Product Category :

Film Capacitors

Ratings :

-

Subcategory :

Capacitors

Dielectric Material :

Polypropylene (PP), Metallized

Operating Temperature :

-40°C ~ 85°C

Height - Seated (Max) :

0.965" (24.50mm)

Series :

PSB

Manufacturer :

Nichicon

Lead Style :

Straight

Tolerance :

±10%

Package :

Bulk

Product Status :

Active

Packaging :

Bulk

Lead Diameter :

1.2 mm

Number of Pins :

4 Pin

Product Type :

Film Capacitors

Product :

General Film Capacitors

Termination Style :

Radial

Applications :

High Frequency, Switching; High Pulse, DV/DT; Snubber

Length :

32 mm

ESR :

3.4 MOhms

Width :

22 mm

Voltage Rating - AC :

630V

Size / Dimension :

1.260" L x 0.591" W (32.00mm x 15.00mm)

RoHS :

Details

Maximum Operating Temperature :

+ 85 C

Minimum Operating Temperature :

- 40 C

Lead Spacing :

1.083" (27.50mm)

ESR (Equivalent Series Resistance) :

3.4 MOhms

Height :

37 mm

Voltage Rating - DC :

1200V (1.2kV)

Dielectric :

Polypropylene (PP)

Capacitance :

0.47 µF

Features :

-

Termination :

PC Pins
