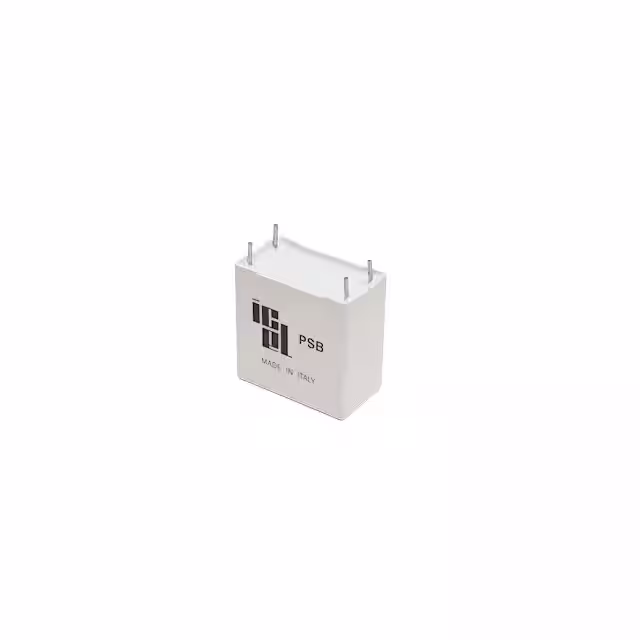

PSB2152680KHL
Or copy the link below:
- Mfr.Part #
- PSB2152680KHL
- Manufacturer
- Nichicon
- Package / Case
- Radial
- Datasheet
- Download
- Description
- FILM CAP BOXED RADIAL
- Stock
- 15,125
- In Stock ：
- 15,125
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nichicon
- Product Category :
- Film Capacitors
- Product :
- General Film Capacitors
- Product Category :
- Film Capacitors
- Manufacturer :
- Nichicon
- Size / Dimension :
- 1.043" L x 0.512" W (26.50mm x 13.00mm)
- Package / Case :
- Radial
- Brand :
- Nichicon
- Capacitance :
- 0.068 μF
- Mounting Type :
- Through Hole
- Termination Style :
- Radial
- Voltage Rating - AC :
- 650V
- Height - Seated (Max) :
- 0.866" (22.00mm)
- Lead Diameter :
- 0.8 mm
- Tolerance :
- ±10%
- Applications :
- High Frequency, Switching; High Pulse, DV/DT; Snubber
- Series :
- PSB
- Dielectric Material :
- Polypropylene (PP), Metallized
- Termination :
- PC Pins
- Width :
- 11 mm
- Maximum Operating Temperature :
- + 85 C
- Lead Style :
- Straight
- Operating Temperature :
- -40°C ~ 85°C
- Product Status :
- Active
- ESR (Equivalent Series Resistance) :
- 13.8 mOhms
- Dielectric :
- Polypropylene (PP)
- Product Type :
- Film Capacitors
- Features :
- -
- Voltage Rating - DC :
- 1500V (1.5kV)
- Subcategory :
- Capacitors
- Length :
- 32 mm
- Packaging :
- Bulk
- Lead Spacing :
- 0.886" (22.50mm)
- Package :
- Bulk
- Ratings :
- -
- Minimum Operating Temperature :
- - 40 C
- RoHS :
- Details
- Height :
- 20 mm
- ESR :
- 13.8 mOhms
- Number of Pins :
- 4 Pin
- Datasheets
- PSB2152680KHL
PSB 0.068 μF Film Capacitor ±10% Radial PC Pins Polypropylene (PP), Metallized
PSB2152680KHL Overview
This device has 13.8 mOhms ESR (Equivalent Series Resistance).Electrical devices such as this have a lead spacing of 0.886" (22.50mm).In addition to operating at -40°C ~ 85°C degrees, the device is capable of operating at other temperatures as well.
PSB2152680KHL Features
13.8 mOhms equivalent series resistance (ESR)
PSB2152680KHL Applications
There are a lot of Nichicon
PSB2152680KHL applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
