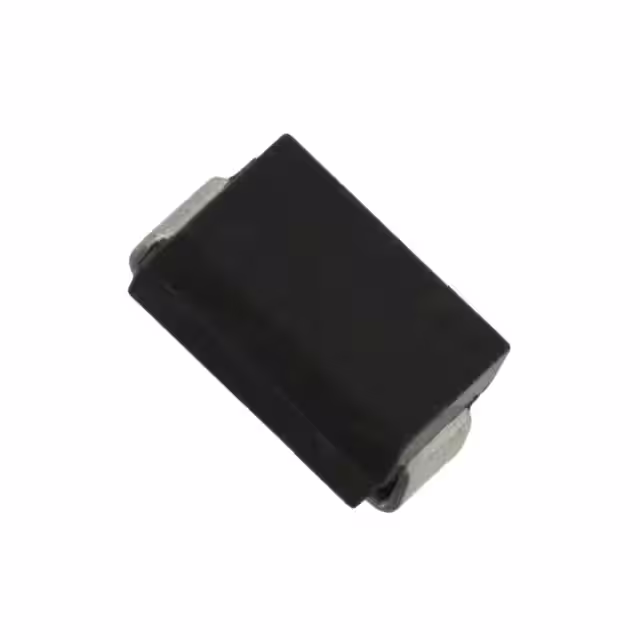

PU2DBH

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Rectifiers - Single

Qualification :

AEC-Q101

Product :

Rectifiers

Type :

Fast Recovery Rectifiers

Product Status :

Active

Voltage - Forward (Vf) (Max) @ If :

930 mV @ 2 A

Supplier Device Package :

DO-214AA (SMB)

Maximum Operating Temperature :

+ 175 C

Current - Average Rectified (Io) :

2A

Package / Case :

DO-214AA, SMB

Capacitance @ Vr, F :

33pF @ 4V, 1MHz

Minimum Operating Temperature :

- 55 C

Subcategory :

Diodes and Rectifiers

Brand :

TAIWAN SEMICONDUCTOR

Voltage - DC Reverse (Vr) (Max) :

200 V

Reverse Recovery Time (trr) :

25 ns

Mounting Type :

Surface Mount

Manufacturer :

TAIWAN SEMICONDUCTOR

Mounting Style :

SMD/SMT

Diode Type :

Standard

Package :

Digi-Reel?

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Series :

Automotive, AEC-Q101

Recovery Time :

25 ns

Product Type :

Rectifiers

Vf - Forward Voltage :

870 mV

Max Surge Current :

140 A

Configuration :

Single

RoHS :

Details

Packaging :

MouseReel

Product Category :

Rectifiers

Current - Reverse Leakage @ Vr :

2 μA @ 200 V

Operating Temperature - Junction :

-55°C ~ 175°C
