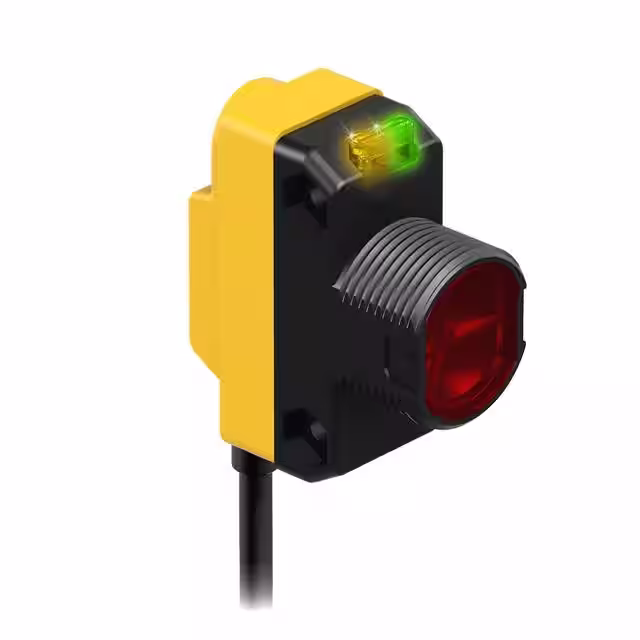

QS18VN6FF100 W/30
Or copy the link below:
- Mfr.Part #
- QS18VN6FF100 W/30
- Manufacturer
- Banner Engineering
- Package / Case
- Datasheet
- Download
- Description
- WORLD-BEAM QS18SERIES: FIXED-FIE
- Stock
- 30
- In Stock ：
- 30
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Banner Engineering
- Product Category :
- Optical Sensors - Photoelectric, Industrial
- Voltage - Supply :
- 10V ~ 30V
- Base Product Number :
- QS18VN6
- Turn-On Delay Time :
- 100 ms
- Housing Material :
- ABS
- Mount :
- CABLE
- Output Configuration :
- NPN - Dark-ON/Light-ON - Selectable
- Sensing Distance :
- 3.937 (100mm)
- Minimum Operating Temperature :
- - 20 C
- Operating Temperature :
- -20°C ~ 70°C
- Light Source :
- Red (630nm)
- RoHS :
- Compliant
- Product Status :
- Active
- Ingress Protection :
- NEMA 6P, IEC IP67
- Adjustment Type :
- -
- Connection Method :
- CABLE
- Amplifier Type :
- Photoelectric
- Number of Pins :
- 4
- Sensing Method :
- Background Suppression
- Max Operating Temperature :
- 70 °C
- Operating Supply Voltage :
- 10 VDC to 30 VDC
- Ratings :
- IP67
- Cable Length :
- 9 m
- Response Time :
- 850 µs
- Package :
- Box
- Min Operating Temperature :
- -20 °C
- Maximum Operating Temperature :
- + 70 C
- Series :
- QS18
- Datasheets
- QS18VN6FF100 W/30
10V ~ 30V QS18 Series - Background Suppression 4-Pin -20°C ~ 70°C
QS18VN6FF100 W/30 Overview
For reliable performance, set the photoelectric sensor's temperature to zero. For these electronic components to function, a circuit or system should have 0 volts. An ideal response time for photoelectric sensors is 850 µs. Photoelectric sensors must operate at a minimum temperature of 0 to ensure reliability. A maximum operating temperature of 70 °C allows for reliable operation. To make a photoelectric sensor work, 4 pins must be connected. Photoelectric sensors should have a supply voltage of 10 VDC to 30 VDC in order to be most effective.
QS18VN6FF100 W/30 Features
Sensing Distance: 3.937 (100mm)
4 pins
Response Time: 850 µs
Operating Temperature: -20°C ~ 70°C
QS18 Series
QS18VN6FF100 W/30 Applications
There are a lot of Banner Engineering
QS18VN6FF100 W/30 Photoelectric Sensors applications.
- Counting small objects
- Detecting colours
- Monitoring bigger areas for objects with light grids
- Measuring distance
- Logistics and materials handling
- Automatic doors
- Zone scanners
- Passive infrared sensors
- Luminescence sensors
- Contrast sensors
