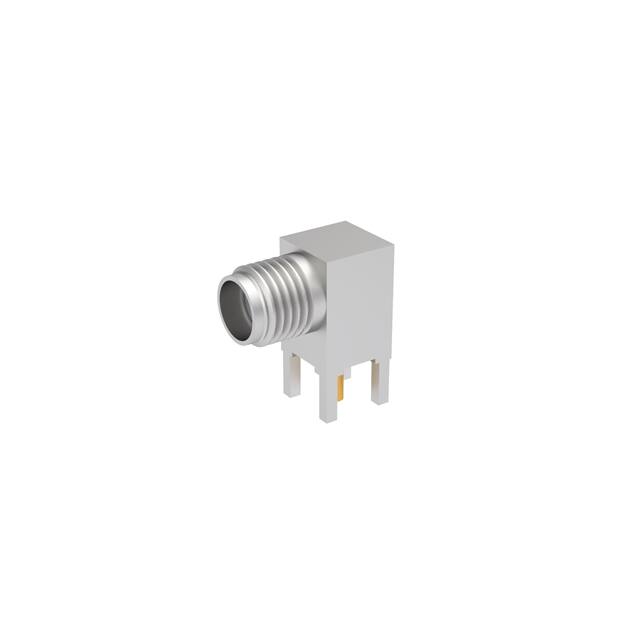

R124680120

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Shield Termination :

Solder

Brand :

Radiall

Mounting Type :

Through Hole, Right Angle

Mounting Style :

Through Hole

Impedance :

50(ohm)

Connector Style :

SMA

Operating Temperature :

-65°C ~ 165°C

Product Type :

RF Connectors / Coaxial Connectors

Body Material :

Brass

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Contact Plating :

Gold over Copper

Rad Hardened :

No

Product Height (mm) :

9.7(mm)

Product Category :

RF Connectors / Coaxial Connectors

Body Finish :

White Bronze

Fastening Type :

Threaded

Ingress Protection :

-

Product Depth (mm) :

6.31(mm)

Product :

PCB Connectors

Contact Termination :

Solder

Frequency - Max :

18 GHz

Number of Ports :

1

Product Status :

Active

Packaging :

Bulk

Housing Color :

Silver

Base Product Number :

R12468

Center Contact Plating :

Gold

Operating Temp Range :

-65C to 165C

Voltage Rating :

500 V

Insertion Loss :

-

RF Series :

SMA

Features :

-

Center Contact Material :

BERYLLIUM COPPER

Gender :

RCP

Mounting Feature :

-

Product Length (mm) :

12.3(mm)

Subcategory :

RF Interconnects

Orientation :

RIGHT ANGLE

Manufacturer :

Radiall

Type :

SMA

Connector Type :

Jack, Female Socket

Mating Cycles :

100

Series :

-

Cable Group :

-

Termination :

Solder

Package :

Bulk

Body Plating :

Bright Bronze

Terminate To :

PCB

Operating Frequency :

0 to 18(Hz)

Includes :

-

Contact Material :

BERYLLIUM COPPER
