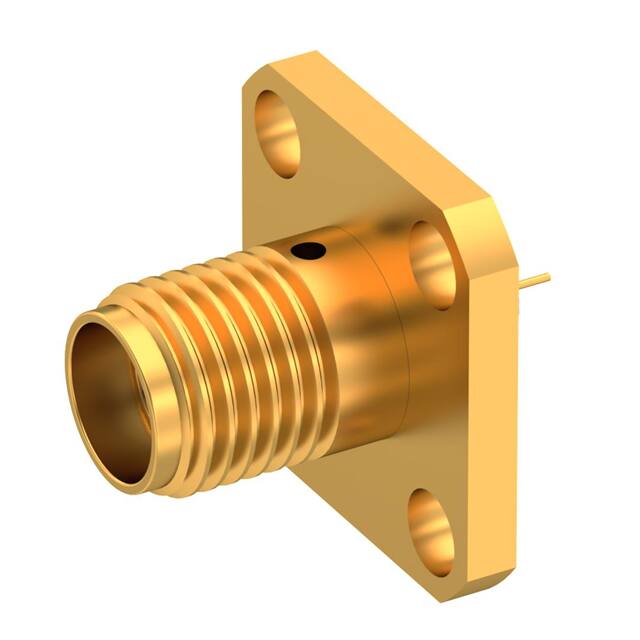

R125513000
Or copy the link below:
- Mfr.Part #
- R125513000
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / SQUARE FLANGE JACK RECEPTA
- Stock
- 28,550
- In Stock ：
- 28,550
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Depth :
- 12.7 mm
- Cable Group :
- -
- Mounting Feature :
- Flange
- Features :
- Extended Insulation
- Series :
- -
- Orientation :
- Straight
- Contact Termination :
- Solder
- Min Operating Temperature :
- -65 °C
- Mounting Type :
- Panel Mount, Through Hole
- Max Frequency :
- 18 GHz
- Insertion Loss :
- -
- Mount :
- Panel
- Gender :
- Male
- Includes :
- -
- Frequency - Max :
- 18 GHz
- Housing Color :
- Gold
- Length :
- 12.7 mm
- RoHS :
- Compliant
- Frequency :
- 18 GHz
- RF Series :
- SMA
- Shield Termination :
- Solder
- Contact Plating :
- Gold
- Mating Cycles :
- 500
- Product Status :
- Active
- Impedance :
- 50 Ω
- Operating Temperature :
- -65°C ~ 165°C
- Center Contact Plating :
- Gold
- Product :
- Panel Receptacles
- Connector Type :
- Jack, Female Socket
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Package :
- Bulk
- Body Finish :
- Gold
- Body Material :
- Brass, Stainless Steel
- Center Contact Material :
- BERYLLIUM COPPER
- Fastening Type :
- Threaded
- Connector Style :
- SMA
- Body Plating :
- Gold
- Number of Ports :
- 1
- Insulation Material :
- Polytetrafluoroethylene
- Voltage Rating :
- 500 V
- Ingress Protection :
- -
- Base Product Number :
- R12551
- Contact Material :
- Copper
- Max Operating Temperature :
- 165 °C
- Radiation Hardening :
- No
- Datasheets
- R125513000
Jack, Female Socket Threaded 50 Ω SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C ~ 165°C
R125513000 Overview
This product is packaged in a Jack, Female Socket carton.It's mounted Panel Mount, Through Hole.It's from the - Series.Ideally, it should be used at temperatures below 165 °C.Temperatures below -65 °C are required for this device.You can manage a variety of tasks with its 1 ports.It's mounted by Panel.-65°C ~ 165°C Operating Temperature is what the device runs at.When the frequency is set to 18 GHz, it can perform efficiently.It can reach 18 GHz frequencies.
R125513000 Features
- series
R125513000 Applications
There are a lot of Radiall
R125513000 Coaxial Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
