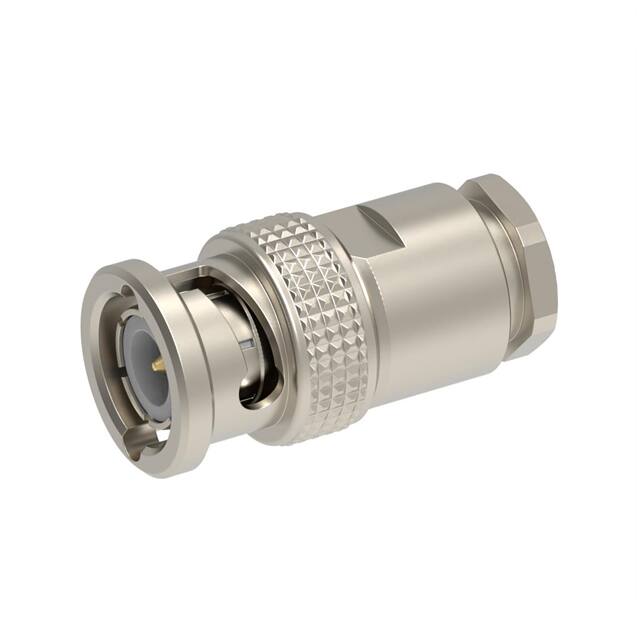

R141005000

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mounting Feature :

-

RF Series :

BNC

Subcategory :

RF Interconnects

Orientation :

Straight

Polarity :

Standard

Gender :

Male

Connector Style :

BNC

Mating Cycles :

500

Operating Temperature :

-65°C ~ 165°C

IP Rating :

-

Center Contact Material :

Brass

Body Orientation :

Straight

Ingress Protection :

-

Package :

Bulk

Minimum Operating Temperature :

-65°C

Fastening Type :

Bayonet Lock

Contact Termination :

Solder

Insertion Loss :

-

Connector Type :

Plug, Male Pin

Mounting Style :

Cable Mount / Free Hanging

Base Product Number :

R14100

Impedance :

50Ω

Number of Ports :

1

Features :

-

Packaging :

Bulk

Frequency - Max :

4 GHz

Brand :

Radiall

Body Finish :

Nickel

Shield Termination :

Clamp

Cable Group :

PPD

Manufacturer :

Radiall

Mounting Type :

Cable Mount

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Body Material :

Brass

Product :

Connectors

Product Type :

RF Connectors / Coaxial Connectors

Includes :

-

Housing Color :

Silver

Series :

-

Voltage Rating :

500 V

Body Style :

-

Product Status :

Active

Termination Method :

Clamp

RoHS :

Details

Cable Type :

50 PPD

Product Category :

RF Connectors / Coaxial Connectors

Center Contact Plating :

Gold

Body Plating :

Nickel

Maximum Operating Temperature :

+165°C

Termination Style :

Clamp

Operating Frequency :

0 to 4GHz

Contact Plating :

Gold Over Nickel
