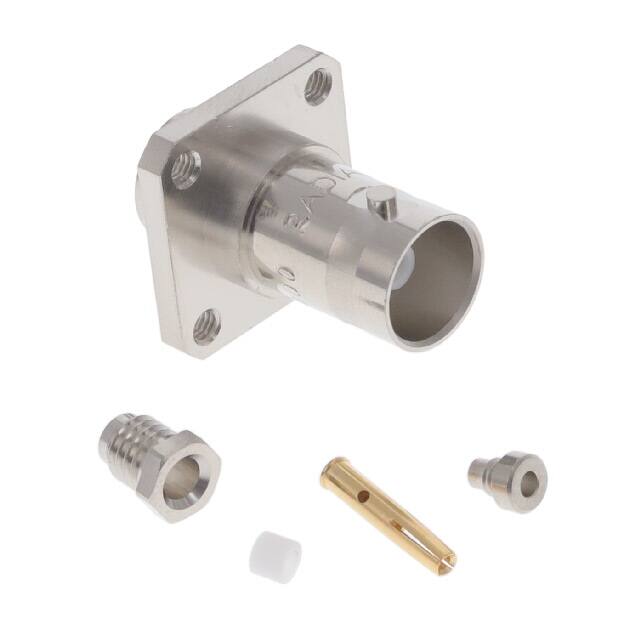

R142202000
Or copy the link below:
- Mfr.Part #
- R142202000
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- BNC / STRAIGHT SQUARE FLANGE JAC
- Stock
- 29,258
- In Stock ：
- 29,258
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Package :
- Box
- Termination Style :
- Clamp
- Base Product Number :
- R14220
- Connector Style :
- BNC
- Series :
- -
- Manufacturer :
- Radiall
- Product Category :
- RF Connectors / Coaxial Connectors
- Center Contact Material :
- BERYLLIUM COPPER
- Product Status :
- Active
- Cable Type :
- RG-179, 187
- Contact Termination :
- Solder
- Ingress Protection :
- -
- RoHS :
- Details
- Brand :
- Radiall
- Product Length :
- 26.5 mm
- Mounting Style :
- Flange Mount
- Mounting :
- Panel Mount
- Impedance :
- 75 Ohms
- Body Orientation :
- Straight
- Subcategory :
- RF Interconnects
- Cable Group :
- RG-179
- Housing Color :
- Silver
- Terminate To :
- 2.6/75S Cable
- RF Series :
- BNC
- Insertion Loss :
- -
- Connector Type :
- Jack, Female Socket
- Polarity :
- Standard
- Includes :
- -
- IP Rating :
- -
- Voltage Rating :
- 335 V
- Shield Termination :
- Clamp
- Body Style :
- Flange
- Operating Temperature :
- -65 to 165 °C
- Contact Plating :
- Gold
- Product Type :
- RF Connectors / Coaxial Connectors
- Features :
- -
- Fastening Type :
- Bayonet Lock
- Mating Cycles :
- 500
- Center Contact Plating :
- Gold
- Product :
- Connectors
- Gender :
- Receptacle
- Number of Ports :
- 1
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Frequency - Max :
- 1.5 GHz
- Mounting Type :
- Panel Mount
- Orientation :
- Straight
- Mounting Feature :
- Flange
- Body Finish :
- Nickel
- Body Material :
- Brass
- Contact Material :
- BERYLLIUM COPPER
- Datasheets
- R142202000
Jack, Female Socket Bayonet Lock 75 Ohms BNC Solder 1 Port Polytetrafluoroethylene (PTFE) -65 to 165 °C
R142202000 Overview
It comes in Jack, Female Socket packaging.There is a mounting type of Panel Mount for this device.This product is part of the - Series.A variety of tasks can be managed through its 1 ports.In this case, the device operates at -65 to 165 °C Operating Temperature.
R142202000 Features
- series
R142202000 Applications
There are a lot of Radiall
R142202000 Coaxial Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
