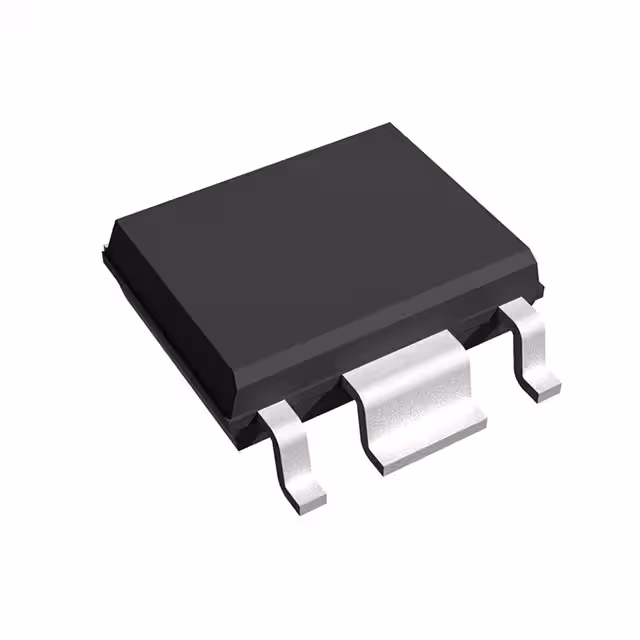

R1514S036B-E2-FE

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Pin Count :

6

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Output Current1-Max :

0.15A

Output Voltage1-Max :

3.672V

HTS Code :

8542.39.00.01

Input Voltage (Max) :

36V

Width :

3.9mm

Terminal Position :

Dual

JESD-30 Code :

R-PDSO-G6

Length :

5.02mm

Terminal Finish :

Matte Tin (Sn)

Height Seated (Max) :

1.85mm

Terminal Pitch :

1.905mm

Output Voltage 1 :

3.6V

RoHS Status :

RoHS Compliant

Peak Reflow Temperature (Cel) :

260

Terminal Form :

Gull wing

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Factory Lead Time :

9 Weeks

JESD-609 Code :

e3

Output Voltage1-Min :

3.528V

ECCN Code :

EAR99

Surface Mount :

yes

Number of Functions :

1

Number of Terminations :

6

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Input Voltage (Min) :

4V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
