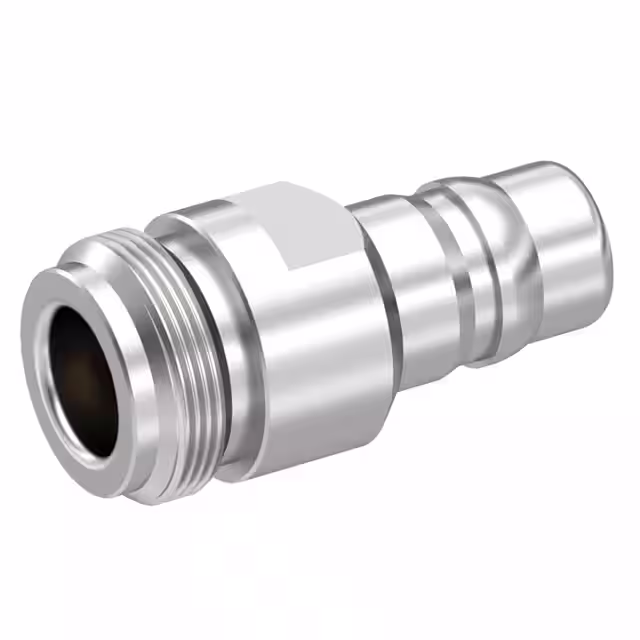

R191760000

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Adapters

Mounting Type :

Free Hanging (In-Line)

Conversion Type :

Between Series

Resistance :

50Ohm

Option :

GENERAL PURPOSE

Body Material :

Brass

Adapter Series :

QN to N

Adapter Type :

Jack to Jack

Packaging :

Bulk

Mating Cycles :

100

MIL Conformance :

No

Radiation Hardening :

No

IEC Conformance :

No

Impedance :

50Ohm

Pbfree Code :

yes

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Contact Material :

Copper

Insertion Loss :

0.12 dB

Published :

2005

Operating Temperature :

-55°C~125°C

Center Contact Material :

BERYLLIUM COPPER

VSWR :

1.2

Insulation Material :

POLYTETRAFLUORO ETHYLENE

Center Contact Plating :

Silver

DIN Conformance :

No

Convert From (Adapter End) :

QN Jack, Female Socket

Convert To (Adapter End) :

N Jack, Female Socket

Contact Plating :

Copper, Silver

Frequency :

6GHz

Fastening Type :

Threaded, Threaded

Coupling Type :

THREADED-THREADED

Style :

Straight

Gender Type B :

FEMALE

Filter Feature :

No

Panel Mount :

No

RoHS Status :

RoHS Compliant

Center Gender :

Female to Female

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

7 Weeks
