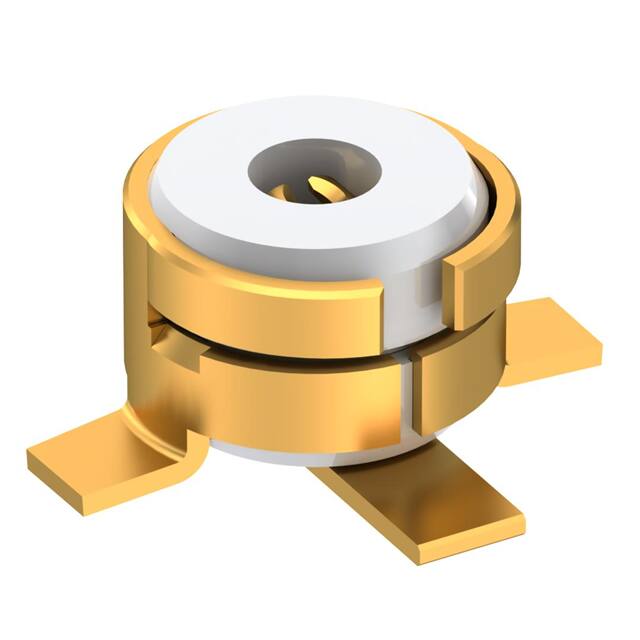

R209408052

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Termination Style :

Solder

Includes :

-

Operating Temperature :

-40 to 125 °C

Maximum Operating Temperature :

+ 125 C

Contact Material :

BERYLLIUM COPPER

Body Finish :

Gold

Cable Type :

-

Product Length :

5.3 mm

Connector Type :

Jack, Male Pin

Contact Plating :

Gold Over Tin Nickel

Center Contact Plating :

Gold

Body Material :

Phosphor Bronze

Connector Style :

-

Fastening Type :

Snap-On

Impedance :

50(ohm)

Operating Frequency :

0HZ TO 6GHZ(Hz)

Insulation Resistance :

500 MOhms

Contact Termination :

Solder

Rad Hardened :

No

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Cable Group :

-

Polarity :

Standard

Mounting Feature :

-

Number of Ports :

1

Mounting :

Surface Mount

Terminate To :

PCB

Product Length (mm) :

5.3(mm)

Features :

-

RoHS :

Details

Mating Cycles :

50

Center Contact Material :

BERYLLIUM COPPER

Termination Method :

Solder

Body Plating :

Gold Over Nickel

Housing Color :

Gold

Termination :

Solder

Base Product Number :

R20940

Operating Temp Range :

-40C to 125C

Package :

Tape and Reel (TR)

Mounting Style :

Surface Mount

Body Orientation :

Straight

Mounting Type :

Surface Mount

Ingress Protection :

-

RF Series :

MMS

Series :

-

Product :

PCB Receptacles

IP Rating :

-

Product Depth (mm) :

4.3(mm)

Product Height (mm) :

2.3(mm)

Insertion Loss :

-

Frequency - Max :

6 GHz

Voltage Rating :

50 V

Body Style :

-

Shield Termination :

Solder

Type :

MMS

Minimum Operating Temperature :

- 40 C

Manufacturer :

Radiall

Product Diameter (mm) :

Not Required(mm)

Orientation :

Straight

Gender :

Receptacle

Subcategory :

RF Interconnects

Product Status :

Active

Packaging :

Tape and Reel

Product Type :

RF Connectors / Coaxial Connectors

Brand :

Radiall

Product Category :

RF Connectors / Coaxial Connectors
