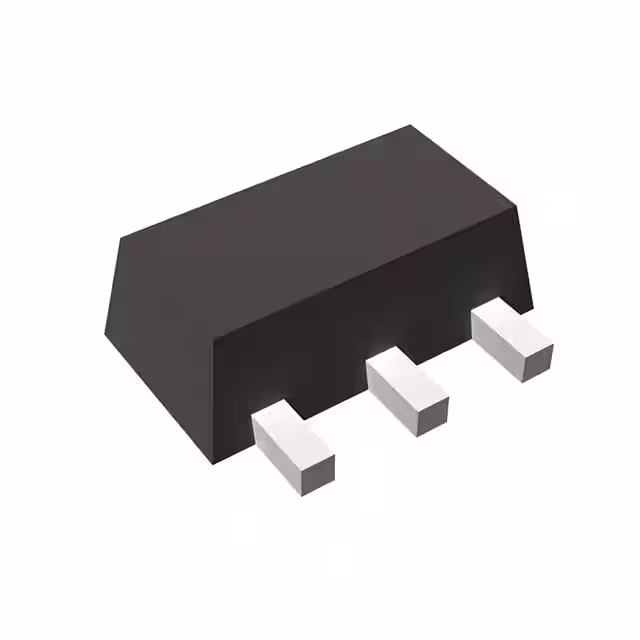

R3111H311C-T1-FE

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Supervisors

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Adjustable Threshold :

yes

Qualification Status :

Not Qualified

Operating Temperature (Min) :

-40°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

9 Weeks

Terminal Finish :

Matte Tin (Sn)

Number of Channels :

1

Peak Reflow Temperature (Cel) :

260

Pbfree Code :

yes

JESD-30 Code :

R-PDSO-G3

Length :

4.5mm

Height Seated (Max) :

1.6mm

Operating Temperature (Max) :

85°C

Packaging :

Tape and Reel (TR)

Surface Mount :

yes

Width :

2.5mm

RoHS Status :

RoHS Compliant

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Supply Voltage-Max (Vsup) :

10V

Terminal Form :

Gull wing

Temperature Grade :

Industrial

Supply Voltage-Min (Vsup) :

0.7V

Terminal Pitch :

1.5mm

HTS Code :

8542.39.00.01

Additional Feature :

DETECTOR THRESHOLD VOLTAGE IS 3.1V

Terminal Position :

Dual

JESD-609 Code :

e3

Pin Count :

3

Number of Terminations :

3

Number of Functions :

1

ECCN Code :

EAR99
