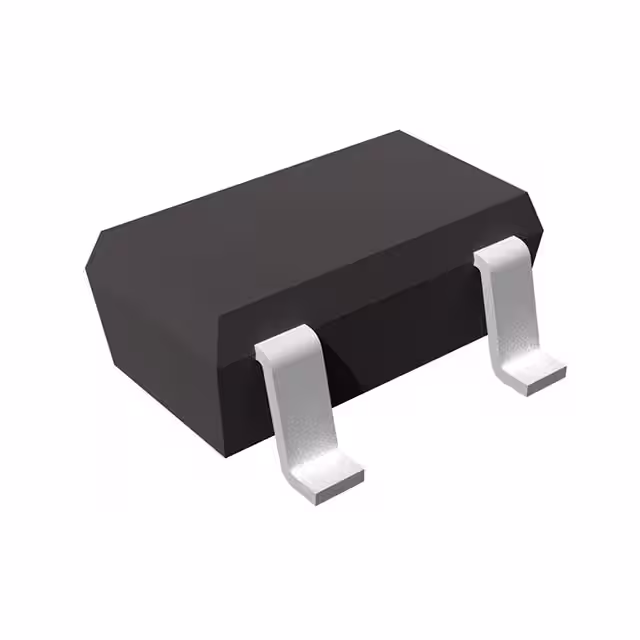

R3111N272C-TR-FE

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Supervisors

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height Seated (Max) :

1.4mm

Terminal Position :

Dual

Adjustable Threshold :

yes

Packaging :

Tape and Reel (TR)

Factory Lead Time :

9 Weeks

JESD-609 Code :

e3

Supply Voltage :

12V

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Qualification Status :

Not Qualified

HTS Code :

8542.39.00.01

Pin Count :

3

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Pitch :

0.95mm

Temperature Grade :

Industrial

Number of Functions :

1

Number of Channels :

1

Pbfree Code :

yes

Peak Reflow Temperature (Cel) :

260

Operating Temperature (Min) :

-40°C

Terminal Finish :

Tin (Sn)

Terminal Form :

Gull wing

Additional Feature :

DETECTOR THRESHOLD VOLTAGE IS 2.7V

Supply Voltage-Min (Vsup) :

0.7V

Surface Mount :

yes

Number of Terminations :

3

Width :

1.6mm

Operating Temperature (Max) :

85°C

Length :

2.9mm

Supply Voltage-Max (Vsup) :

10V

RoHS Status :

RoHS Compliant

JESD-30 Code :

R-PDSO-G3

ECCN Code :

EAR99
