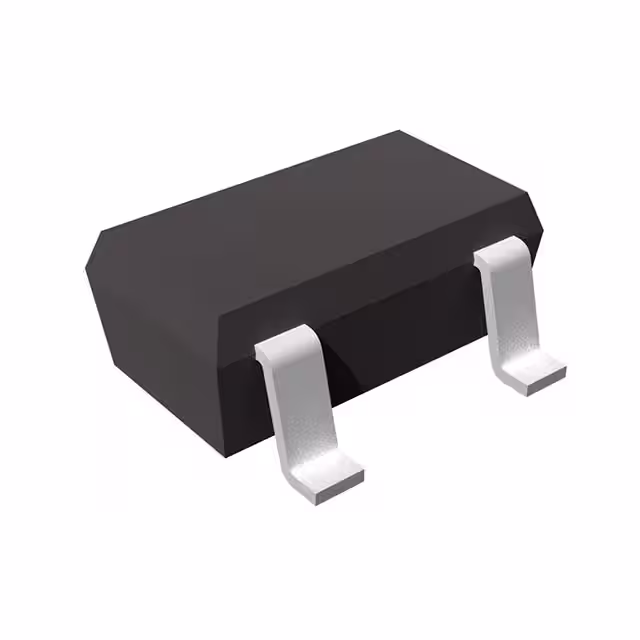

R3111N432C-TR-FE

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Supervisors

Width :

1.6mm

Peak Reflow Temperature (Cel) :

260

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature (Min) :

-40°C

Number of Channels :

1

Pin Count :

3

Pbfree Code :

yes

Number of Terminations :

3

JESD-609 Code :

e3

Height Seated (Max) :

1.4mm

RoHS Status :

RoHS Compliant

Factory Lead Time :

9 Weeks

Terminal Pitch :

0.95mm

Terminal Finish :

Tin (Sn)

Supply Voltage-Max (Vsup) :

10V

Number of Functions :

1

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Qualification Status :

Not Qualified

JESD-30 Code :

R-PDSO-G3

HTS Code :

8542.39.00.01

Adjustable Threshold :

yes

Terminal Position :

Dual

Supply Voltage :

12V

Terminal Form :

Gull wing

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Surface Mount :

yes

Additional Feature :

DETECTOR THRESHOLD VOLTAGE IS 4.3V

Temperature Grade :

Industrial

Supply Voltage-Min (Vsup) :

0.7V

Packaging :

Tape and Reel (TR)

Length :

2.9mm

ECCN Code :

EAR99

Operating Temperature (Max) :

85°C
