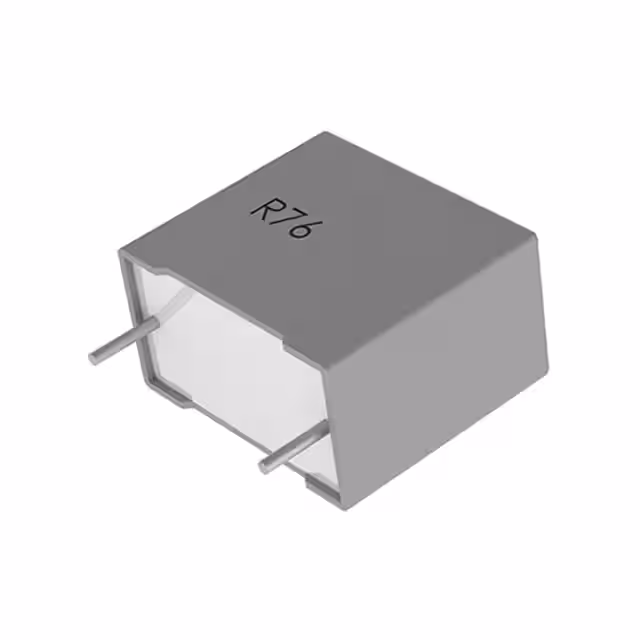

R76PI31005050J

Manufacturer :

KEMET

Product Category :

Film Capacitors

Ratings :

AEC-Q200

Capacitance Tolerance :

± 5%

Dielectric Material :

Polypropylene (PP), Metallized

RoHS :

Details

Operating Temperature :

-55°C ~ 110°C

Product Type :

Film Capacitors

Dielectric :

Polypropylene (PP)

Maximum Operating Temperature :

+ 110 C

Height :

14.5 mm

Length :

18 mm

Diameter :

-

ESR :

0.011Ohm

Lead Style :

Straight

Number of Pins :

2 Pin

Minimum Operating Temperature :

- 55 C

Termination :

PC Pins

Brand :

KEMET

Applications :

Automotive; High Frequency, Switching; High Pulse, DV/DT

Product :

General Film Capacitors

Subcategory :

Capacitors

Height - Seated (Max) :

0.575" (14.60mm)

Termination Style :

Radial

Packaging :

Bulk

Ripple Current :

-

Package :

Bulk

Features :

-

Manufacturer :

KEMET

Type :

Automotive DC and Pulse Film Capacitor

Voltage Rating - AC :

400V

Tolerance :

±5%

Size / Dimension :

0.709" L x 0.335" W (18.00mm x 8.50mm)

ESR (Equivalent Series Resistance) :

11 mOhms

Product Category :

Film Capacitors

Lead Spacing :

0.591" (15.00mm)

Product Status :

Active

Width :

14.5 mm

Voltage Rating - DC :

630V

Series :

R76

Product Height :

14.5mm

RMS Current (Irms) :

6.1A

Product Width :

8.5mm

Lead Diameter :

0.6 mm to 0.8 mm

Qualification :

AEC-Q200

Product Length :

18mm

Capacitance :

0.1 µF
