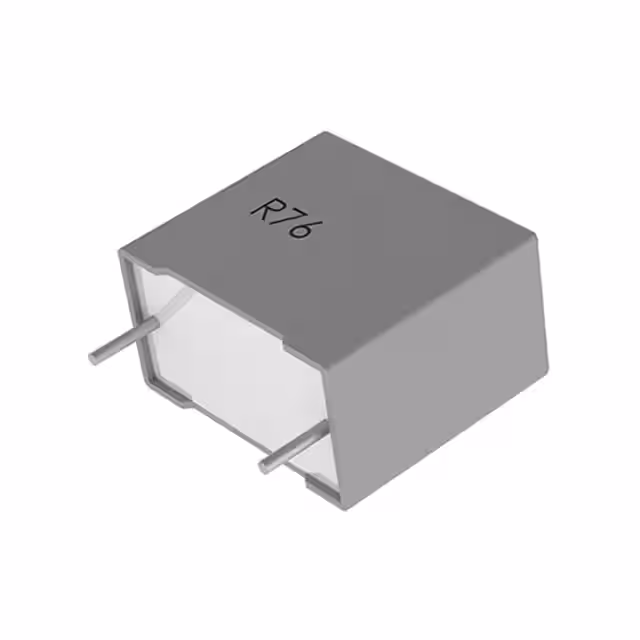

R76TF14705050J
Or copy the link below:
- Mfr.Part #
- R76TF14705050J
- Manufacturer
- KEMET
- Package / Case
- Radial
- Datasheet
- Download
- Description
- FILM, RADIAL, PULSE, DOUBLE META
- Stock
- 590
- In Stock ：
- 590
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Film Capacitors
- Minimum Operating Temperature :
- - 55 C
- ESR :
- 0.1355ohm
- Product Type :
- Film Capacitors
- Series :
- R76
- Qualification :
- AEC-Q200
- Packaging :
- Bulk
- Lead Diameter :
- 0.6 mm
- Brand :
- KEMET
- Width :
- 11 mm
- Number of Pins :
- 2 Pin
- Lead Spacing :
- 0.394" (10.00mm)
- Type :
- Automotive DC and Pulse Film Capacitor
- Subcategory :
- Capacitors
- Product Length :
- 13mm
- ESR (Equivalent Series Resistance) :
- 135.5 mOhms
- Product :
- General Film Capacitors
- Length :
- 13 mm
- Ripple Current :
- -
- Diameter :
- -
- Size / Dimension :
- 0.512" L x 0.197" W (13.00mm x 5.00mm)
- Lead Style :
- Straight
- Applications :
- Automotive; High Frequency, Switching; High Pulse, DV/DT
- Termination :
- PC Pins
- Package :
- Bulk
- RMS Current (Irms) :
- 1.5A
- Height :
- 11 mm
- Manufacturer :
- KEMET
- Ratings :
- AEC-Q200
- Product Width :
- 5mm
- Package / Case :
- Radial
- Mounting Type :
- Through Hole
- Dielectric :
- Polypropylene (PP)
- Voltage Rating - DC :
- 1600V (1.6kV)
- Dielectric Material :
- Polypropylene (PP), Metallized
- Features :
- -
- Height - Seated (Max) :
- 0.437" (11.10mm)
- Termination Style :
- Radial
- Product Height :
- 11mm
- Product Category :
- Film Capacitors
- RoHS :
- Details
- Tolerance :
- ±5%
- Capacitance Tolerance :
- ± 5%
- Voltage Rating - AC :
- 650V
- Product Status :
- Active
- Operating Temperature :
- -55°C ~ 110°C
- Capacitance :
- 4700 pF
- Maximum Operating Temperature :
- + 110 C
- Datasheets
- R76TF14705050J
R76 4700 pF Film Capacitor ±5% Radial PC Pins Polypropylene (PP), Metallized
R76TF14705050J Overview
It has 135.5 mOhms ESR (Equivalent Series Resistance).Electrical devices with 0.394" (10.00mm) lead spacing are used in this application.The power of a system depends on the presence of - ripple current.A temperature of -55°C ~ 110°C is suitable for operation of the device.
R76TF14705050J Features
135.5 mOhms equivalent series resistance (ESR)
R76TF14705050J Applications
There are a lot of KEMET
R76TF14705050J applications of film capacitors.
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
