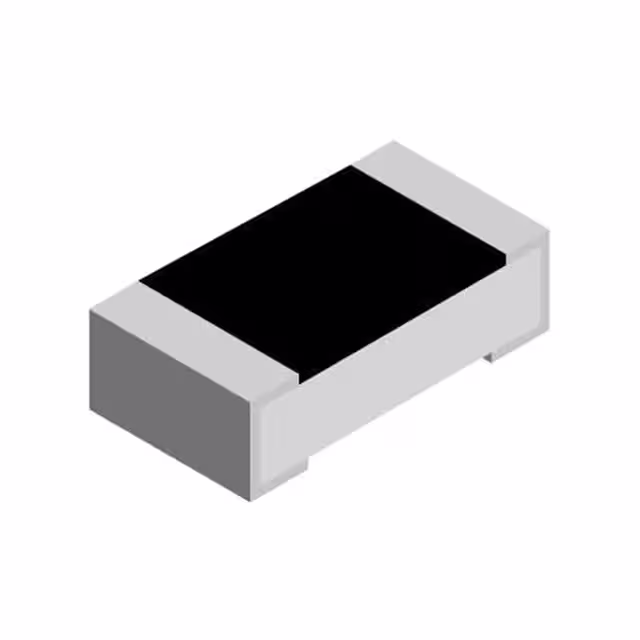

RCC080510M0FKEA

Manufacturer :

Vishay / Dale

Product Category :

Chip Resistor - Surface Mount

Product Height (mm) :

0.45(mm)

Manufacturer :

Vishay

Product Status :

Active

Packaging :

Tape and Reel

Temperature Coefficient :

±100ppm/°C

Type :

Thick Film

Current Sensing :

No

Operating Temp Range :

-55C to 155C

Power Rating :

250 mW (1/4 W)

Anti-Surge :

No

Length :

2 mm

Product Category :

Thick Film Resistors - SMD

Case Size :

0805

Resistance :

10 MOhms

RoHS :

Details

Features :

Automotive AEC-Q200

Product Type :

Thick Film Resistors

Case Style :

Conformal Coated

Power (Watts) :

0.25W, 1/4W

Product Diameter (mm) :

Not Required(mm)

Temperature Range @ Derated Power :

70 TO 155

Supplier Device Package :

0805

Width :

1.25 mm

Anti-Sulfurated :

No

Tolerance :

±1%

Product Length (mm) :

2(mm)

Composition :

Thick Film

Height :

0.45 mm

Lead Spacing (nom) :

Not Required(mm)

Termination Style :

Pad

Maximum Operating Temperature :

+ 155 C

Failure Rate :

-

Product Depth (mm) :

1.25(mm)

Ratings :

AEC-Q200

Brand :

Vishay / Dale

Technology :

Thick Film

Minimum Operating Temperature :

- 55 C

Operating Temperature :

-55°C ~ 155°C

Height - Seated (Max) :

0.020" (0.50mm)

Package :

Cut Tape (CT)

Power Rating(s) :

0.25 (1/4)(W)

Number of Terminals :

2

Military Standard :

Not Required

Product :

Thick Film Resistors SMD

Construction :

RECTANGULAR

Package / Case :

0805 (2012 Metric)

Size / Dimension :

0.079" L x 0.049" W (2.00mm x 1.25mm)

Package Type :

SMD

Number of Terminations :

2

Tolerance (+ or -) :

1%

Mounting Style :

PCB Mount

Subcategory :

Resistors

Voltage Rating :

200 V

Application :

Automotive Grade

Series :

RCC e3
