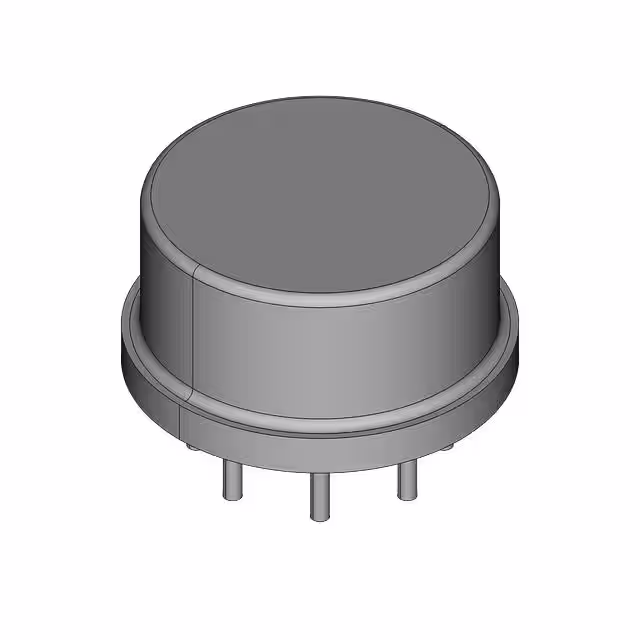

REF01AJ

Manufacturer :

Analog Devices, Inc.

Product Category :

Voltage Reference

Temperature Grade :

Military

Surface Mount :

No

RoHS Status :

Non-RoHS Compliant

Supply Current-Max (Isup) :

1.4mA

Terminal Form :

Wire

Analog IC - Other Type :

THREE TERMINAL VOLTAGE REFERENCE

Operating Temperature (Max) :

125°C

Voltage Tolerance-Max :

0.3%

Number of Functions :

1

Number of Outputs :

1

Supply Voltage-Min (Vsup) :

13V

Number of Terminations :

8

Output Voltage-Max :

10.03V

Terminal Position :

BOTTOM

Qualification Status :

Not Qualified

Supply Voltage :

15V

Operating Temperature (Min) :

-55°C

Output Voltage-Min :

9.97V

JESD-30 Code :

O-MBCY-W8

Supply Voltage-Max (Vsup) :

33V

Peak Reflow Temperature (Cel) :

Not Applicable

Trim/Adjustable Output :

yes

Temp Coef of Voltage-Max :

8.5 ppm/°C

JESD-609 Code :

e0

Terminal Finish :

TIN LEAD

Output Voltage :

10V

Time@Peak Reflow Temperature-Max (s) :

Not Applicable
