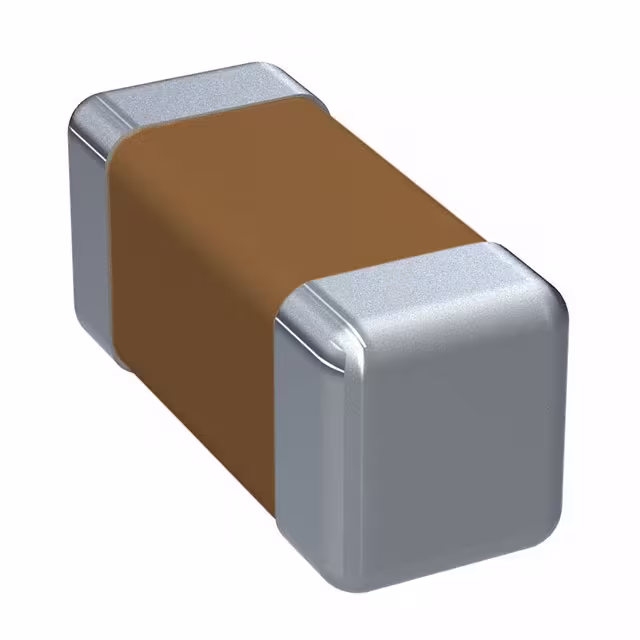

RF03N200F100CT

Manufacturer :

Walsin Technology

Product Category :

Ceramic Capacitors

Applications :

RF, Microwave, High Frequency

Mounting Type :

Surface Mount, MLCC

Temperature Characteristics Code :

C0G

Subcategory :

Capacitors

Length :

0.6 mm

Height :

0.3 mm

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Capacitor Type :

CERAMIC CAPACITOR

Product :

RF Microwave / High Q

Dielectric Material :

Ceramic

Packing Method :

TR, Paper, 7 Inch

Class :

Class 1

Voltage - Rated :

10V

Terminal Finish :

TIN OVER NICKEL

Thickness (Max) :

0.013" (0.33mm)

Negative Tolerance :

1

Failure Rate :

-

JESD-609 Code :

e3

Type :

Ultra High Q and Low ESR Multilayer Ceramic Chip Capacitor

Operating Temperature :

-55°C ~ 125°C

Product Type :

Ceramic Capacitors

Manufacturer :

Walsin

Multilayer :

yes

Minimum Operating Temperature :

- 55 C

Package Shape :

RECTANGULAR PACKAGE

Lead Spacing :

-

Termination Style :

SMD/SMT

Packaging :

MouseReel

Maximum Operating Temperature :

+ 125 C

Terminal Shape :

WRAPAROUND

Ratings :

-

RoHS :

Details

Capacitance :

20 pF

Product Status :

Active

Positive Tolerance :

1

Tolerance :

±1%

Features :

High Q, Low Loss, Ultra Low ESR

Size Code :

0201

Brand :

Walsin

Dielectric :

C0G (NP0)

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Package :

Tape and Reel (TR)

Series :

RF

Termination :

Standard

Mounting Feature :

Surface Mount

Temperature Coefficient :

C0G, NP0

Height - Seated (Max) :

-

Lead Style :

-

Package / Case :

0201 (0603 Metric)

Width :

0.3 mm
